01 - Cover Sheet


02 - Controls/induction Unit

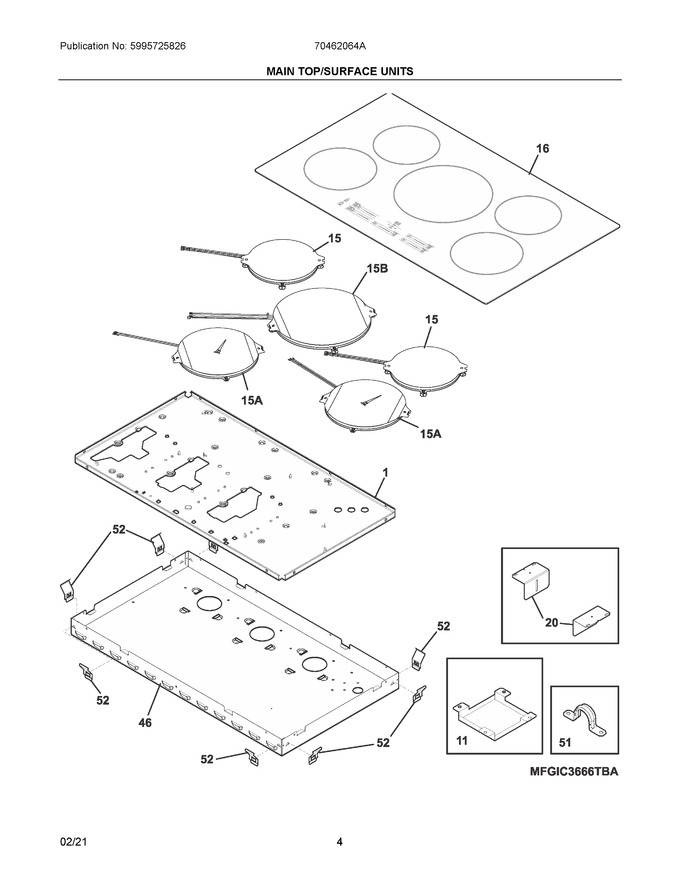

03 - Main Top/surface Units


04 - Wiring Diagram


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304514393		Panel, Coil Mounting				$ 123.04
11	5304506079		Deflector, Air		Appelez-nous	-
15	357226370		Element, Induction Coil, 180 Mm			Immediately	$ 118.11
16	5304530060		Maintop, Assembly, Black   (Replaces: 5304525244)				$ 993.92
20	5304514345		Bracket, Retainer, (2)		Appelez-nous	-
46	5304534026		Box, Burner   (Replaces: 5304514387)		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
15A	357227574		Element, Induction Coil, 210 Mm				$ 202.48
15B	5304514341		Element, Induction Coil, 260 Mm			Immediately	$ 285.15
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	318163601		Cleaner-cooktop				$ 0.42
NIA	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NIB	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
