SELECT A DIAGRAM

01 - Cover Sheet

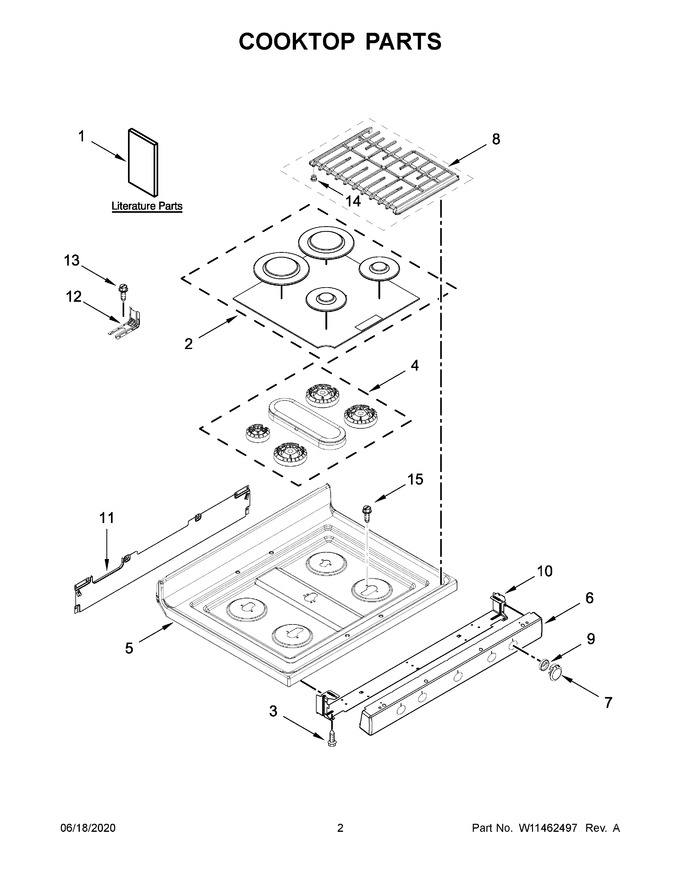

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435642		Owners Manual (en/fr/sp)		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (left Front, Left Rear, Right Front, Right Rear))   (Replaces: W11352138)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 108.84
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 364.91
6	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
7	W11030413		Knob (stainless)   (Replaces: W10786063)			Immediately	$ 68.58
8	W11381340		Grate Kit (black (set Of 2))   (Replaces: W11241658)				$ 338.74
9	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 97.19
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11447673		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 28.64
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
14	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 11.30
15	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
1A	W11434705		Tech Sheet (en/fr/sp)		Appelez-nous	-
1B	W11435643		Quick Start Guide (en/fr/sp)		Appelez-nous	-
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	W10908902		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60

    View Diagram in Separate Window       Print Part List
