SELECT A DIAGRAM

01 - Cover Sheet

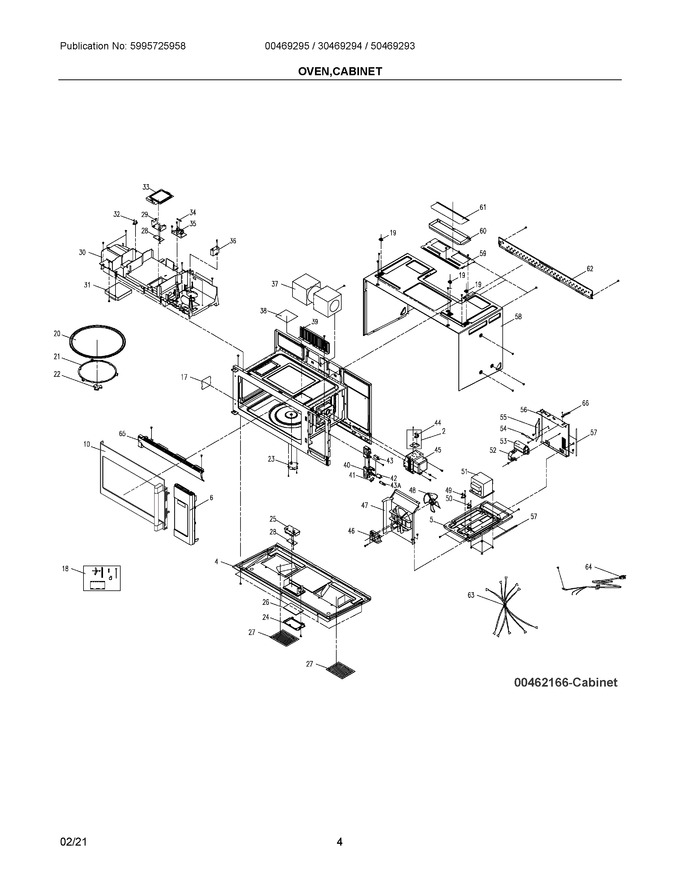

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304515183		Thermostat, Assembly, W/bracket			Immediately	$ 29.59
4	5304509417		Base, Unit Chassis				$ 209.65
5	5304509418		Base, Transformer		Appelez-nous	-
6	5304525304		Control Assembly, Black Stainless				$ 681.87
10	5304525291		Door Assembly, Black Stainless				$ 463.25
17	5304509435		Cover, Waveguide				$ 13.74
18	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
19	5304509436		Mounting Nut Kit			Immediately	$ 14.71
20	5304525313		Tray, Turntable				$ 131.18
21	5304509438		Support, Turntable Ring				$ 52.20
22	5304509439		Coupler, Turntable/motor				$ 13.74
23	5304521583		Motor, Turntable			Immediately	$ 85.83
24	5304525310		Frame, Lens Holder		Appelez-nous	-
25	5304509442		Cover, Lamp				$ 59.09
26	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
27	5304517871		Filter, Grease			Immediately	$ 26.91
28	5304517872		Lamp, Led			Immediately	$ 44.24
29	5304509446		Bracket, Led				$ 22.08
30	5304509447		Duct, Air		Appelez-nous	-
31	5304509448		Vent, Air Outlet		Appelez-nous	-
32	5304515178		Thermostat, Cutout, Oven Cavity			Immediately	$ 28.53
33	5304509450		Cover, Lamp, Oven Cavity				$ 18.62
34	5304509451		Fuse			Immediately	$ 13.01
35	5304525109		Filter, Noise, Electronic				$ 86.00
36	5304509453		Capacitor, Start				$ 141.75
37	5304525312		Motor, Vent				$ 274.62
38	5304509455		Tape, Lamp		Appelez-nous	-
39	5304509456		Cover, Control Shield, Right				$ 19.52
40	5304509457		Latch Hook			Immediately	$ 43.79
41	5304509458		Lever, Switch			Immediately	$ 10.17
42	5304512529		Switch, Monitor			Immediately	$ 37.96
43	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
44	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
45	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
46	5304509471		Motor, Cooling Fan			Immediately	$ 150.42
47	5304509472		Duct, Cooling Fan				$ 79.52
48	5304509473		Fan Blade, Cooling Fan				$ 15.47
49	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
50	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
51	5304515184		Transformer, Power, Hv			Immediately	$ 423.01
52	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
53	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
54	5304515185		Diode, High Voltage			Immediately	$ 25.83
55	5304509480		Vent, Air, Magnetron				$ 57.65
56	5304509481		Plate, Air Guide		Appelez-nous	-
57	5304525314		Cushion, Foam Pad		Appelez-nous	-
58	5304509483		Cabinet, Outer Casing, Black				$ 374.22
59	5304509484		Cover, Vent Motor				$ 140.76
60	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
61	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
62	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
63	5304512500		Harness, Wiring, Main				$ 110.57
64	5304525311		Power Cord, Electric		Appelez-nous	-
65	5304523978		Vent, Black, Front				$ 72.11
66	5304509491		Spacer		Appelez-nous	-
43A	5304515182		Switch, Interlock, Secondary			Immediately	$ 34.84
