SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

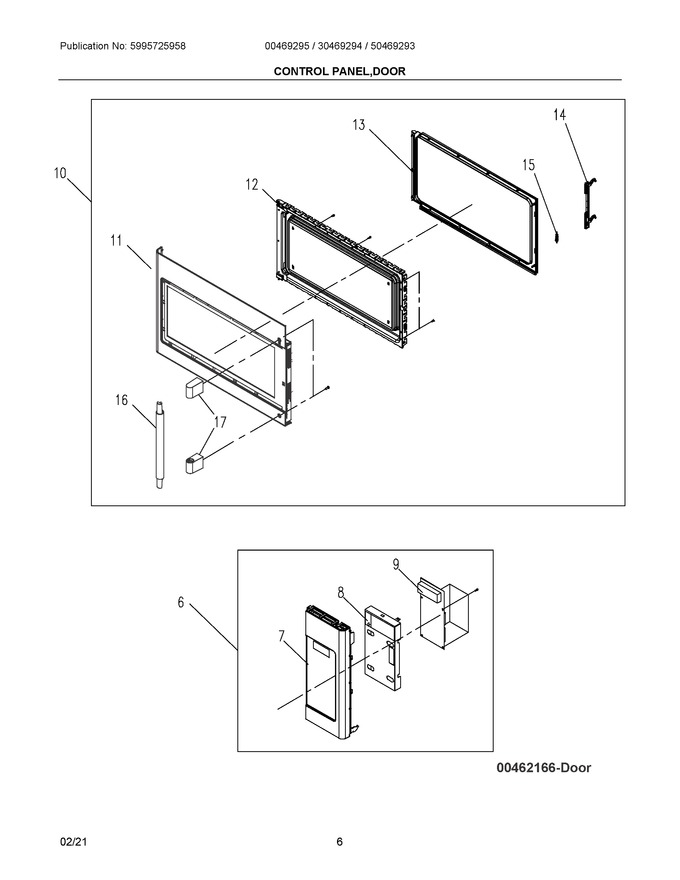

03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304525306		Control Assembly, White		Appelez-nous	-
7	5304525308		Control Panel, W/membrane, White		Appelez-nous	-
8	5304523973		Shield, Pc Board				$ 29.65
9	5304525309		Pc Board, Main, Control/power				$ 349.18
10	5304525293		Door Assembly, White				$ 252.31
11	5304525296		Panel, Outer Door, White		Appelez-nous	-
12	5304525297		Panel, Inner Door, White		Appelez-nous	-
13	5304509431		Frame, Choke Cover, Inner Door				$ 39.76
14	5304525298		Latch, Door			Immediately	$ 10.85
15	5304521953		Spring, Door Latch				$ 7.23
16	5304525301		Handle, Door, White				$ 103.48
17	5304525303		Holder, Handle, White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
