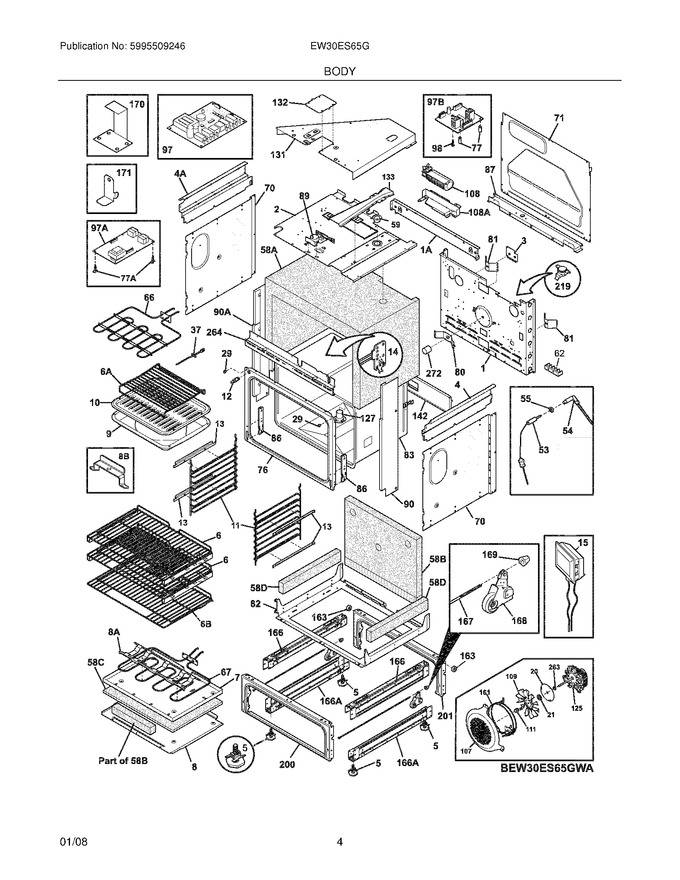

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7318259220		Back,main		Appelez-nous	-
2	7318258922		Shield,insulation ,upper		Appelez-nous	-
3	7318402800		Plate,cover		Appelez-nous	-
4	7318905700		Panel,side ,rh Upper		Appelez-nous	-
5	318175510		Screw,leveling   (Replaces: 7318175508)			Immediately	$ 24.26
6	7318903101		Shelf,oven ,(2)		Appelez-nous	-
7	7318297302		Box,bake Element		Appelez-nous	-
8	7318359500		Panel,service		Appelez-nous	-
9	7318138801		Pan,broiler		Appelez-nous	-
10	7318126401		Insert,broiler Pan		Appelez-nous	-
11	7318903300		Rack,oven Shelf ,(2)		Appelez-nous	-
12	808136601		Switch,oven Light ,door Frame   (Replaces: 7316445501)			Immediately	$ 44.04
13	7318603913		Bracket,ladder Mtg. ,(4)		Appelez-nous	-
14	7318903401		Switch,rack Sensing		Appelez-nous	-
15	318241008		Lamp,oven ,(2) ,halogen   (Replaces: 7318241002)			Immediately	$ 128.93
20	7318389400		Plate,retainer		Appelez-nous	-
21	7318389000		Seal,ring		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 7318147411)				$ 18.95
55	7316247700		Nut,mounting ,(2)		Appelez-nous	-
59	7318072577		Duct,oven Vent		Appelez-nous	-
62	5304409888		Terminal Block Kit   (Replaces: 75303935061)			Immediately	$ 26.69
70	7318259102		Shield,insulation ,sides ,(2)		Appelez-nous	-
71	7318260007		Panel,rear Box		Appelez-nous	-
76	7318056236		Front,oven		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
80	75303320846		Plate,oven Mtg		Appelez-nous	-
81	7318192400		Spring,oven		Appelez-nous	-
82	7318258715		Shield,insulation ,lower		Appelez-nous	-
83	7318261427		Liner,oven Assy		Appelez-nous	-
86	7316508600		Receptacle,hinge ,(2)		Appelez-nous	-
87	7318260615		Bracket,cable Mtg.		Appelez-nous	-
90	7318905804		Panel,side ,black ,rh		Appelez-nous	-
98	75303297477		Screw,6-20 X 1 1/4		Appelez-nous	-
107	7318906601		Cover,fan		Appelez-nous	-
109	318398302		Blade,fan   (Replaces: 7316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer   (Replaces: 7316136600)			Immediately	$ 19.13
127	7318357001		Adapter,vent Tube		Appelez-nous	-
131	7318272901		Box,vent		Appelez-nous	-
132	7318003000		Plate,shield		Appelez-nous	-
133	7318347800		Chimney		Appelez-nous	-
142	7318123910		Deflector		Appelez-nous	-
163	7318014105		Spacer,(2)		Appelez-nous	-
166	7318298410		Bracket,base Support ,(2)		Appelez-nous	-
167	318147811		Screw,lock ,adjusting   (Replaces: 7318147811)				$ 31.19
168	318302400		Wheel & Bracket Assy,adjustable ,(2)   (Replaces: 7318302400)				$ 75.13
169	75304446440		Nut,acorn ,10-32 X 3/8 ,(2)		Appelez-nous	-
170	7318335700		Anti-tip & Accessories		Appelez-nous	-
171	318335200		Bracket,anti-tilt   (Replaces: 7318335200)				$ 31.90
200	7318298221		Frame,drawer ,front		Appelez-nous	-
201	7318298210		Frame,drawer		Appelez-nous	-
263	7316136500		Washer,flat		Appelez-nous	-
264	7318906301		Trim,vent		Appelez-nous	-
272	7318249403		Tube,protector		Appelez-nous	-
1A	7318905600		Back,main ,upper		Appelez-nous	-
4A	7318905701		Panel,side ,lh Upper		Appelez-nous	-
58A	7318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	7318285079		Insulation,oven Back		Appelez-nous	-
58C	7318294912		Insullation,bake Element		Appelez-nous	-
58D	7318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
6A	7318365800		Rack,broiler Pan		Appelez-nous	-
6B	318908006		Shelf,oven   (Replaces: 7318908001)			Immediately	$ 232.91
77A	7316114100		Spacer,(4)		Appelez-nous	-
8A	7318313601		Bracket,bake Element		Appelez-nous	-
8B	7318403200		Bracket,service Panel ,(2)		Appelez-nous	-
90A	7318905805		Panel,side ,black ,lh		Appelez-nous	-
F108	7318073018		Motor,blower		Appelez-nous	-
F108A	7318251300		Bracket,fan Support		Appelez-nous	-
F125	7316415800		Motor,fan		Appelez-nous	-
F161	7318255505		Element,convection ,2500 W		Appelez-nous	-
F166A	7318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F219	318004902		Switch,thermal   (Replaces: 7318004902)			Immediately	$ 71.44
F37	316217002		Probe,oven Temp   (Replaces: 7316217002)			Immediately	$ 61.23
F53	5304504202		Probe,meat Temp   (Replaces: 7318601300)			Immediately	$ 106.19
F54	7318601205		Receptacle,probe		Appelez-nous	-
F66	318255806		Element,broil ,4000w   (Replaces: 7318255806)				$ 282.09
F67	7318254903		Element,bake ,2500w ,8 Pass		Appelez-nous	-
F89	7318261211		Motor,latch Assy		Appelez-nous	-
F97	316442120		Board,power ,relay   (Replaces: 7316442115)			Immediately	$ 309.84
F97A	316443916		Board,relay   (Replaces: 7316443916)			Immediately	$ 443.48
F97B	316519200		Board,relay ,convection   (Replaces: 7316519200)			Immediately	$ 256.24
FNI	7318083083		Harness,wiring ,relay Board		Appelez-nous	-
FNI	7318384411		Wiring Harness,main		Appelez-nous	-
NI	75303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	75303325980		Screw,10-32 X 0.437		Appelez-nous	-
NI	75304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304440988		Screw,10-16 X 3/4		Appelez-nous	-
NI	75304435874		Plate,covering ,probe		Appelez-nous	-
NI	7318373001		Bracket,receptacle ,temp Probe		Appelez-nous	-
NI	75304456367		Rivet,ladder Bracket ,(8)		Appelez-nous	-
NI	5304401490		Screw,6-18 X 1		Appelez-nous	-
NI	7318165800		Spacer		Appelez-nous	-
NI	5304450850		Screw,7-19 X 1/2`` ,(11) ,housing Ring		Appelez-nous	-
NI	75304461333		Screw,10-32 X 17/32		Appelez-nous	-
NI	75303323139		Screw,10-24 X 0.906		Appelez-nous	-
NI	73051050		Screw,shoulder		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	75303300265		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	75303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
