SELECT A DIAGRAM

01 - Cover Sheet

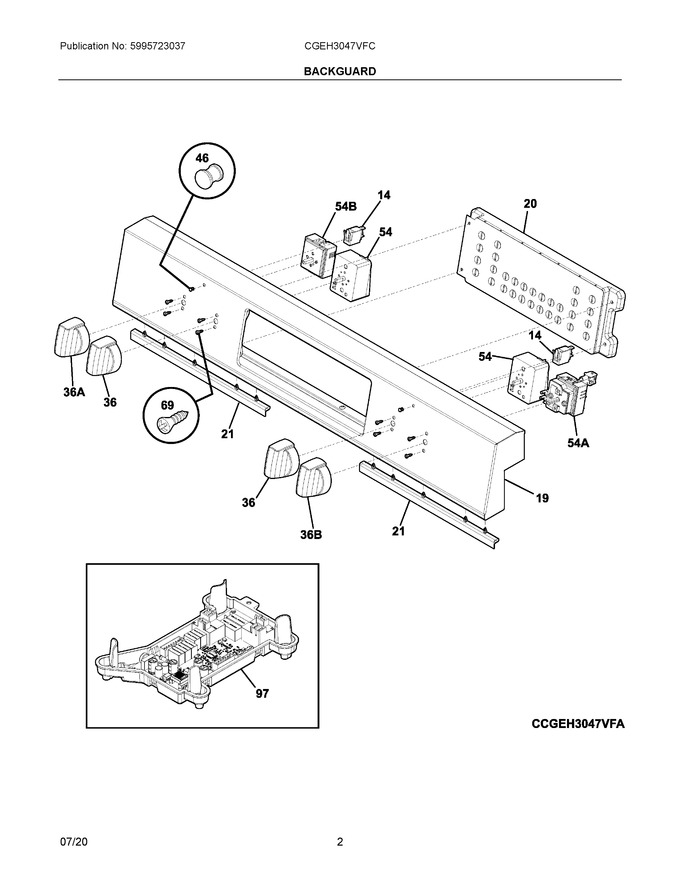

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
19	5304521013		Control Panel, Front, Stainless			Immediately	$ 293.28
20	5304526193		Controller, Electronic, Black, Es501e   (Replaces: 5304523364)			Immediately	$ 314.76
21	5304521020		Seal, Control Panel			Immediately	$ 72.48
36	5304521003		Knob, Infinite Switch, Stainless, Single				$ 78.11
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 330.67
36A	5304521004		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 84.93
36B	5304521007		Knob, Infinite Switch, Stainless, Triple				$ 85.69
54A	807004702		Switch, Triple, Infinite			Immediately	$ 125.69
54B	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	5304522933		Harness, Wiring, Backsplash			Immediately	$ 190.35
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	5304521041		Insulator, Controller, W/adhesv Tape				$ 14.41

    View Diagram in Separate Window       Print Part List
