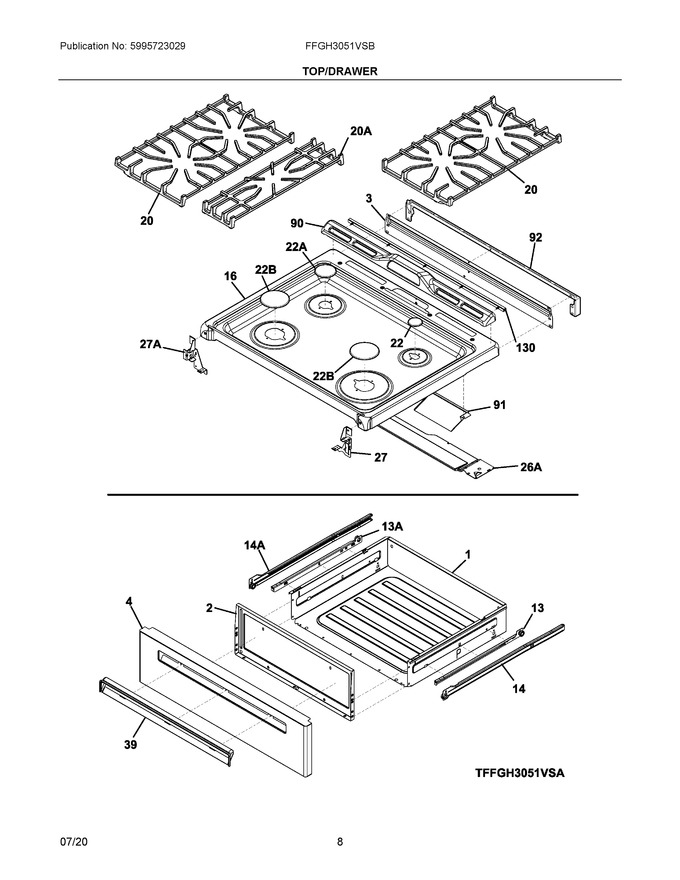

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer   (Replaces: 5304511880)			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304510527		Panel, Drawer, Stainless				$ 110.06
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	5304520363		Main Top, Black		Appelez-nous	-
20	5304518358		Grate, Burner, Black, Side, (2)				$ 118.31
22	5304520370		Cap, Burner, Small, Black			Immediately	$ 15.62
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
39	5304511879		Handle Insert, Drawer				$ 66.99
90	5304514122		Trim, Vent, Black, Rear				$ 54.60
91	5304514181		Deflector, Moisture, (2)				$ 10.63
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
20A	5304518359		Grate, Burner, Black, Center				$ 119.83
22A	5304520371		Cap, Burner, Medium, Black			Immediately	$ 19.72
22B	5304520372		Cap, Burner, Large, Black			Immediately	$ 22.75
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
