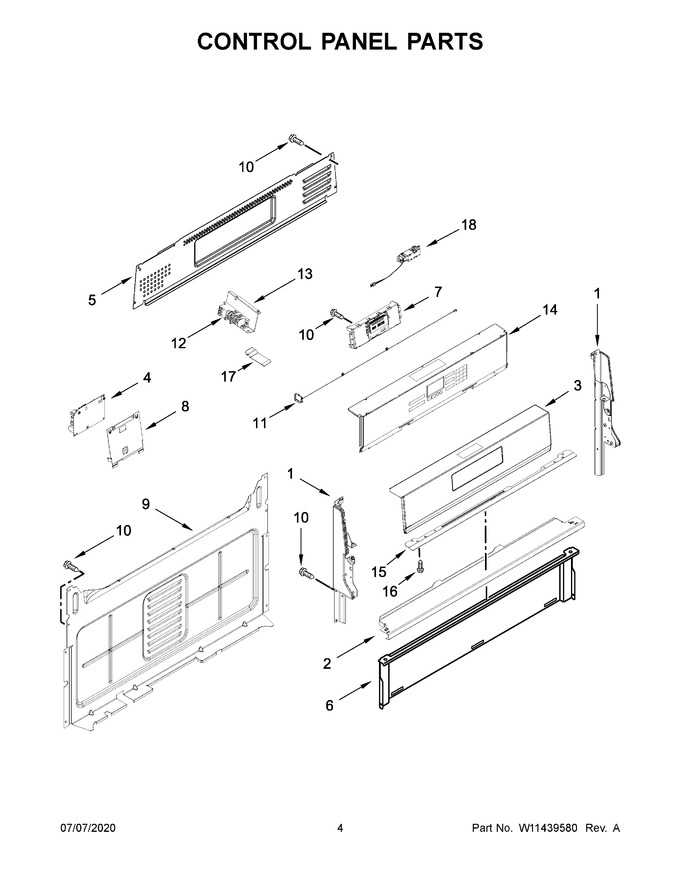

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W11165617		Console (stainless)   (Replaces: W10869991)				$ 462.26
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	W11284302		Control, Electronic (maxwell)   (Replaces: W10871058)				$ 367.52
8	W10762981		Bracket, Mounting				$ 65.50
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	W11113849		Antenna   (Replaces: W11097891)				$ 186.31
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
13	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
14	W11280096		Bracket, Control (includes Overlay) (black)   (Replaces: W10856354)				$ 647.54
15	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 190.66
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
17	WPW10551614		Spreader, Clip-spring   (Replaces: W10551614)				$ 11.77
18	W11165979		Assembly, Wifi   (Replaces: W10888670)				$ 142.81
1A	W11213292		Endcap (black (right))				$ 61.42
