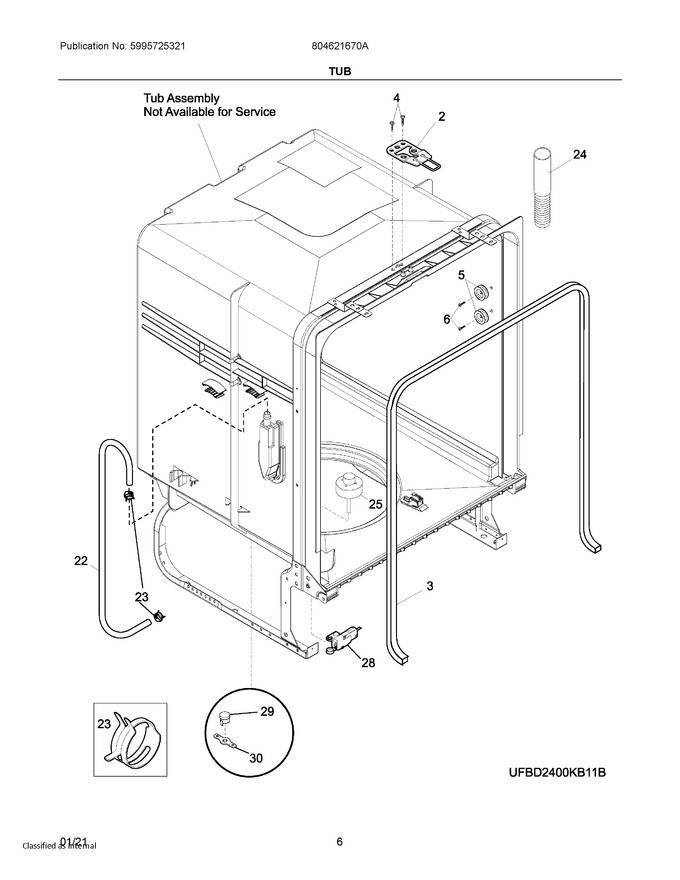

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304532796 | Strike, Door Latch (Replaces: 5304523191) |
|
$ 11.57 | |||||
| 3 | 8581548276014 | Gasket, Tub (Replaces: 154827601) |
|
Immediately | $ 26.30 | ||||
| 4 | 808326801 | Screw, Hex Head, 8-18 X .400, (2) |
|
$ 2.84 | |||||
| 5 | 5304506916 | Roller Assembly, Tub, (8), W/screw-washer (Replaces: 154767502) |
|
Immediately | $ 33.00 | ||||
| 6 | 5303943103 | Screw, W/washer, (8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing, Inlet Water |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp, Tubing, (2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 24 | 807117001 | Hose, Drain |
|
Immediately | $ 36.14 | ||||
| 25 | 5304532207 | Float (Replaces: 5304506520) |
|
Immediately | $ 6.89 | ||||
| 28 | 154773201 | Switch Assy, Float |
|
Immediately | $ 55.29 | ||||
| 29 | 5304525221 | Thermostat, Hi Limit (Replaces: 154642901) |
|
Immediately | $ 31.17 | ||||
| 30 | 154241101 | Retainer, Thermostat |
|
$ 3.62 | |||||
| NI | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) |
|
$ 73.71 | |||||
| NI | 154041001 | Screw, Plask #1, 10-10 X 9/16 |
|
- | |||||
| NI | 154406801 | Bracket Kit, Countertop Mtg, W/scrws & Instr |
|
$ 105.61 | |||||
| NI | 5304525043 | Insulation, Blanket (Replaces: 154858701) |
|
Immediately | $ 45.55 | ||||
| NI | 5300807270 | Screw, (2), Countertop Mtg. |
|
$ 6.72 | |||||
| NIA | 154297701 | Screw, Retainer-thermo |
|
$ 13.46 |
