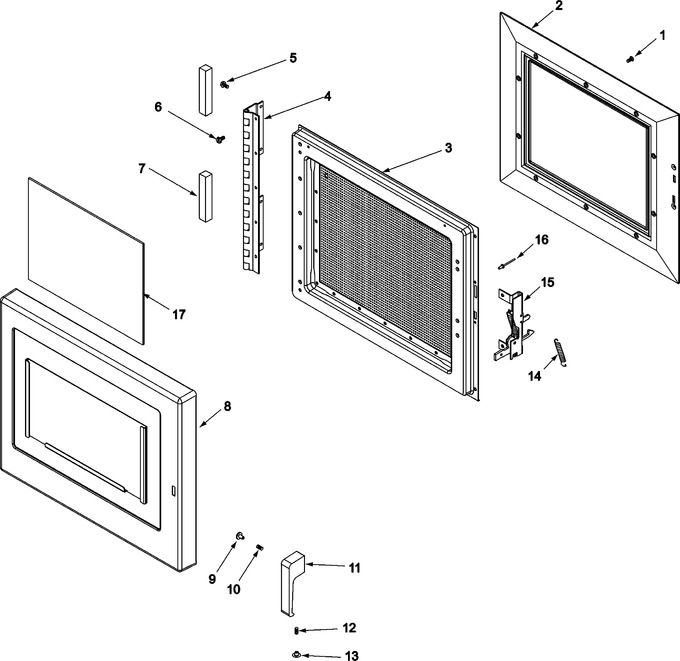

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	M0232218		Screw,hi/lo Y Drive		Appelez-nous	-
001	NLA		Magnetic Y-drive Bit		Appelez-nous	-
002	D7784901		Inner Door/glass Assy		Appelez-nous	-
003	D7683719		Weldment-inner Door (blk)		Appelez-nous	-
004	C8961811		Hinge-door		Appelez-nous	-
005	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
006	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
007	A3263904		Gasket		Appelez-nous	-
008	R0156920		Outer Door/lens Retainer Assy		Appelez-nous	-
009	M0310305		Plug, Button (wht)		Appelez-nous	-
010	5051032202		Set Screw No.10 X .25		Appelez-nous	-
011	12490901		Handle, Door		Appelez-nous	-
012	M0208342		Screw, Set		Appelez-nous	-
013	12360701		Plug-hole (blk)		Appelez-nous	-
014	C8893502		Spring, Door Latch		Appelez-nous	-
015	12002757		Latch Kit   (Replaces: R0000282)				$ 116.60
016	A4539601		Pop Rivet		Appelez-nous	-
017	10432501		Menu Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
