SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

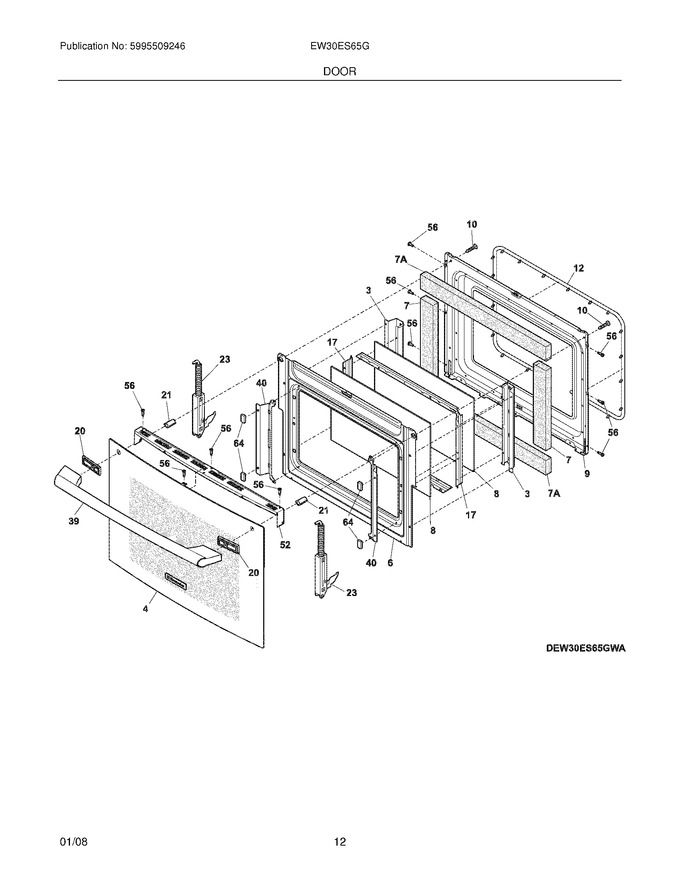

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7318902200		Bracket,insulation ,(2)		Appelez-nous	-
4	7318261381		Glass Assy.,oven Door ,white ,outer ,w/trim		Appelez-nous	-
6	7318904200		Deflector,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 7318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 7316117500)				$ 116.95
9	7318904003		Liner,door				$ 158.36
10	75304441734		Screw,handle Mtg. ,10-24 X 2 ,(2)		Appelez-nous	-
12	318053132		Gasket,oven Door Seal   (Replaces: 7318053131)			Immediately	$ 159.56
17	318264733		Spacer,glass ,(2)   (Replaces: 7318264711)				$ 72.05
20	7318902900		Spacer,handle ,white ,(2)		Appelez-nous	-
21	7318902600		Spacer,handle ,(2)		Appelez-nous	-
23	7318900600		Hinge,oven Door		Appelez-nous	-
39	7241761006		Handle,door ,white		Appelez-nous	-
40	7318902000		Bracket,glass Mtg ,(2)		Appelez-nous	-
52	7318904701		Trim,door ,black ,upper		Appelez-nous	-
56	75304462581		Screw,8-32 X 5/16		Appelez-nous	-
64	75304455945		Spacer,(4)		Appelez-nous	-
7A	318372016		Insulation,door ,(2)   (Replaces: 7318372002)				$ 17.72
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
NI	75304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	75304462582		Screw,10-24 X 1.79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
