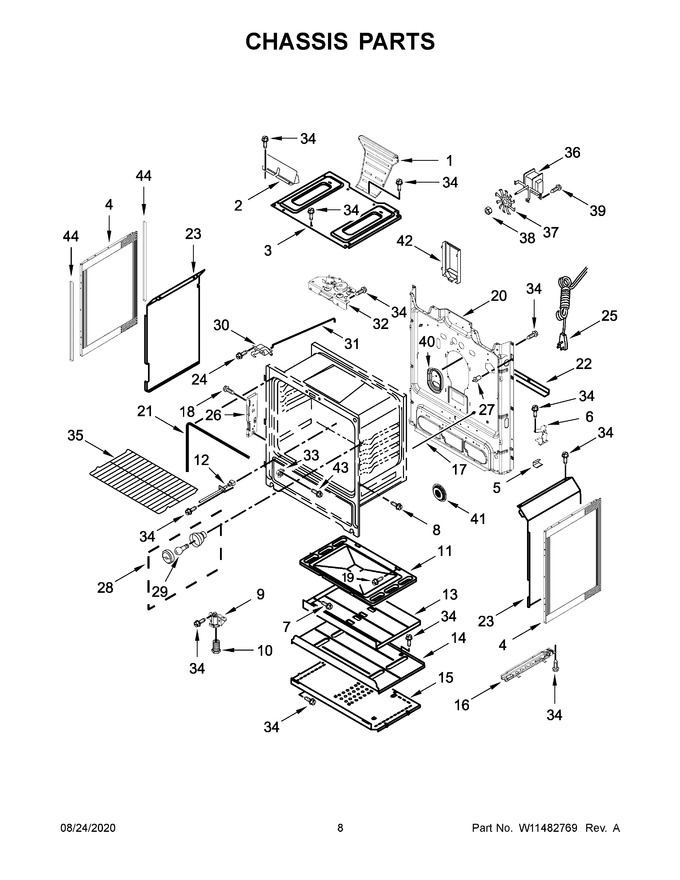

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 135.26 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 63.86 | |||||
| 3 | W11379351 | Box-burner, Gas Sealed |
|
$ 55.02 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 148.35 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 6 | 8523249 | Bracket, Manifold |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 8 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 9 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 11 | WP3195097 | Bottom, Oven (Replaces: 3195097) |
|
$ 213.94 | |||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 126.64 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 270.82 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 96.89 | |||||
| 15 | 8053968 | Shield, Lower |
|
- | |||||
| 16 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 53.71 | |||||
| 17 | W11370462 | Rod, Door Switch |
|
$ 57.97 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 19 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 20 | N/P | Back, Main (not Serviced) |
|
- | |||||
| 21 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 45.18 | ||||
| 22 | W10435470 | Brace, Main Back |
|
$ 70.07 | |||||
| 23 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 24 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 25 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 15.08 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 27 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 130.00 | ||||
| 28 | W11594027 | Light Assembly (Replaces: W11175594) |
|
Immediately | $ 78.31 | ||||
| 29 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 30 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 219.74 | |||||
| 31 | W10078370 | Rod, Push Latch |
|
$ 81.63 | |||||
| 32 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 265.33 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 16.54 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 35 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 42.16 | ||||
| 36 | W10794440 | Fan Motor, Conv (Replaces: W10167915) |
|
Immediately | $ 284.83 | ||||
| 37 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 38 | W11548755 | Nut (Replaces: W10213748) |
|
$ 13.02 | |||||
| 39 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 40 | W10134126 | Bracket, Fan |
|
$ 20.56 | |||||
| 41 | WPW10134124 | Cover, Conv Fan (Replaces: W10134124) |
|
Immediately | $ 87.93 | ||||
| 42 | W10158780 | Cover, Rear Fan |
|
$ 101.56 | |||||
| 43 | W10379120 | Screw |
|
- | |||||
| 44 | W11175143 | Gasket (Replaces: W10919715) |
|
Immediately | $ 21.11 | ||||
| 16A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 53.71 | |||||
| 23A | W11379943 | Retainer, Insulation (right) |
|
- | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 105.20 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 105.98 |
