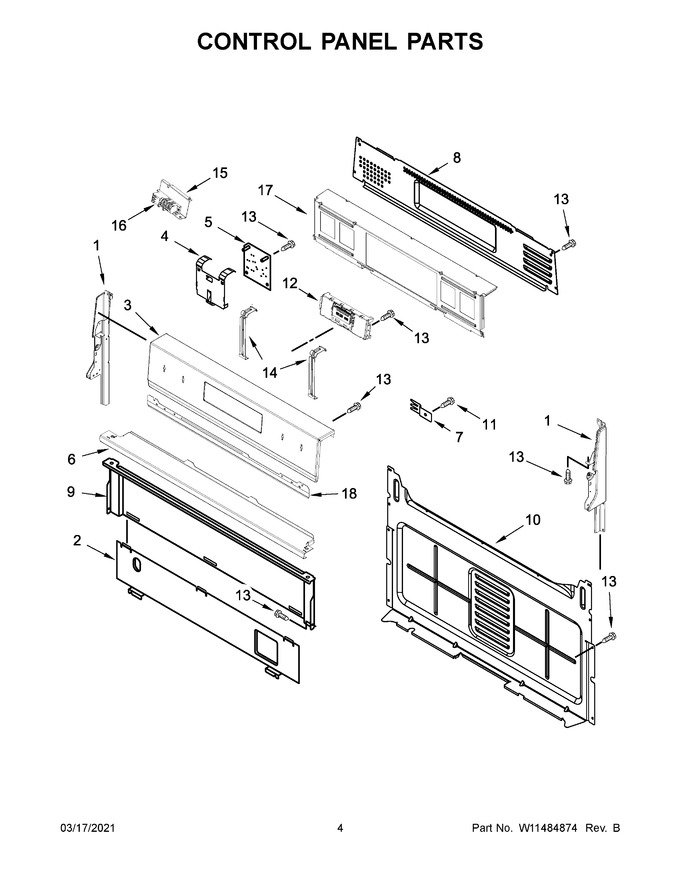

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	8053505		Shield, Heat				$ 142.19
3	W11539577		Panel, Control (black)   (Replaces: W11448331)		Appelez-nous	-
4	W10762981		Bracket, Mounting				$ 65.50
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 143.91
8	W10198745		Cover, Upper				$ 110.48
9	W10192841		Shield, Heat				$ 91.45
10	W10184251		Cover, Back		Appelez-nous	-
11	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
12	W11258611		Control, Electronic (lcx) (black)   (Replaces: W11204531)				$ 439.68
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	W10856361		Bracket, Control		Appelez-nous	-
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
17	W10901802		Panel, Backer				$ 80.93
18	W11443964		Bracket, Eye Brow (black)				$ 190.66
12A	W11258612		Control, Electronic (lcx) (white)   (Replaces: W11204532)				$ 439.98
18A	W11443963		Bracket, Eye Brow (white)				$ 191.40
1A	W11213292		Endcap (black (right))				$ 61.42
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 89.74
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 89.74
3A	W11539579		Panel, Control (white)   (Replaces: W11448330)		Appelez-nous	-
