SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

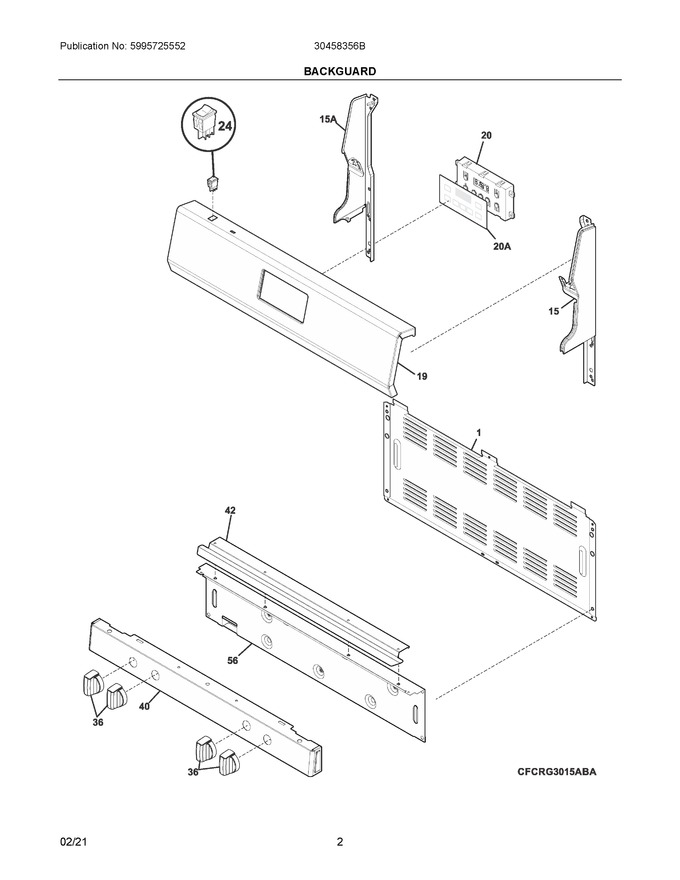

1	316281802		Shield, Backguard, Rear Wall				$ 57.64
15	808754505		Cap, End, White, Rh				$ 61.66
19	5304519407		Panel, Backguard, White		Appelez-nous	-
20	5304521341		Control, Electronic, Es100				$ 201.07
24	5304527842		Switch, Rocker, White   (Replaces: 5304515133)			Immediately	$ 16.13
36	5304507387		Knob, Top Valve, White				$ 21.99
40	316605371		Panel, Manifold, White		Appelez-nous	-
42	808754602		Deflector, Backguard, Light Grey				$ 65.92
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	808754506		Cap, End, White, Lh				$ 65.98
20A	316220728		Overlay, Clock, White			Immediately	$ 39.44
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
