New Model Search:

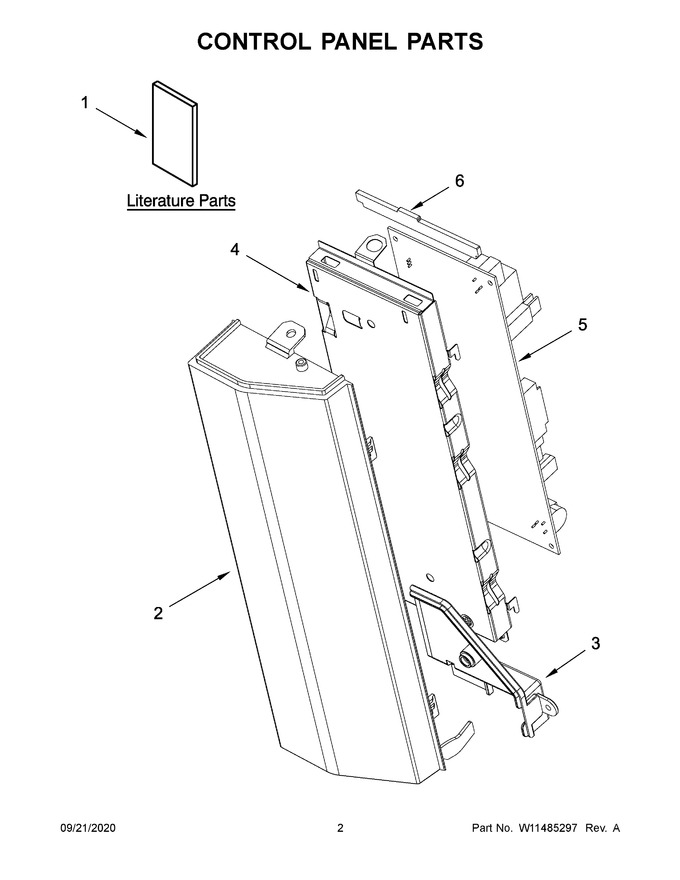

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11401886 | Installation Instructions |
|
- | |||||
| 2 | W10478239 | Cover, Control (black) |
|
$ 90.84 | |||||
| 3 | W10533504 | Duct, Cooling Front |
|
- | |||||
| 4 | W10540727 | Background, Control |
|
$ 30.53 | |||||
| 5 | W11413135 | Pcba, Appliance Control Unit (Replaces: W11359586) |
|
- | |||||
| 6 | W10540721 | Seal, Control |
|
$ 23.63 | |||||
| 1A | W10847760 | Use And Care Guide |
|
- | |||||
| 1B | W10644756 | Quick Reference Guide |
|
- | |||||
| 1C | W11268407 | Tech Sheet |
|
- |
