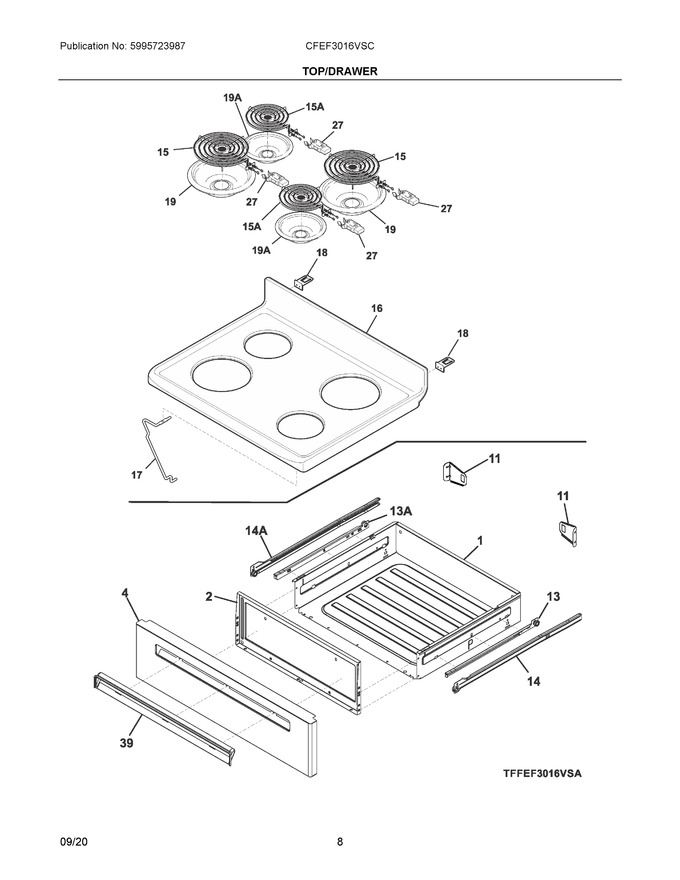

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304510525		Panel, Drawer, Stainless				$ 153.20
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	5304516159		Element, Surface, 8", W/limiter			Immediately	$ 78.12
16	5304531768		Main Top, Black, W/brkt   (Replaces: 316610038)				$ 143.53
17	316057601		Rod, Support, Main Top				$ 64.49
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 12.53
27	5304516152		Wiring Harness, W/receptical, Surface			Immediately	$ 194.74
39	5304511565		Handle, Drawer, Grey, Insert				$ 62.19
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	5304516160		Element, Surface, 6", W/limiter			Immediately	$ 68.96
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 14.64
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46

    View Diagram in Separate Window       Print Part List
