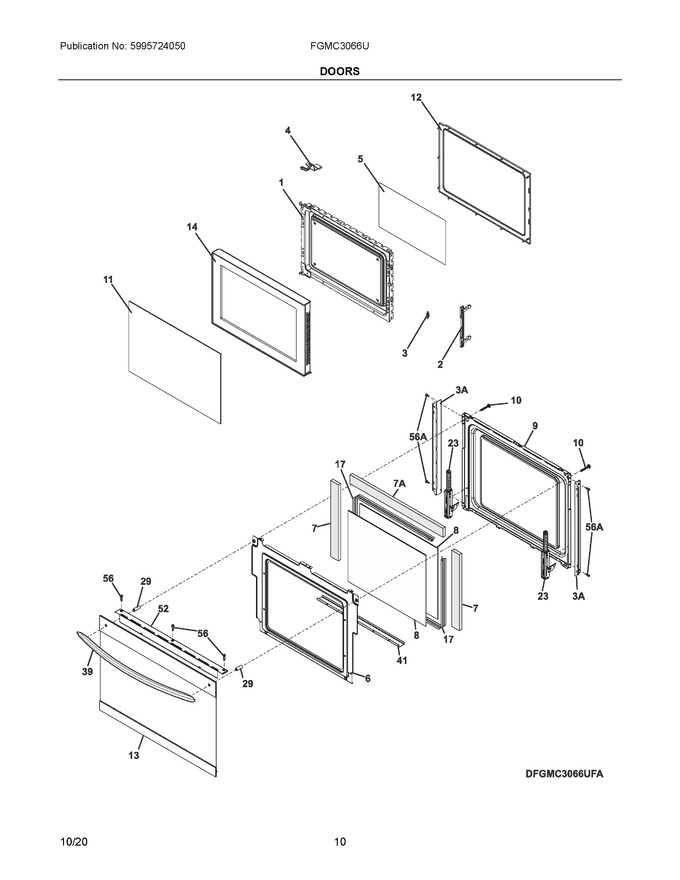

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520033		Frame Assembly, Door		Appelez-nous	-
2	5304519330		Latch Assembly, Door				$ 12.29
3	5304520034		Spring, Latch		Appelez-nous	-
4	5304519333		Hinge, Door, Upper				$ 24.62
5	5304520036		Film, Door, Inner				$ 12.29
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502504)			Immediately	$ 115.65
9	808474614		Liner, Oven Door, Black				$ 147.42
10	316513302		Screw, Truss Head, 10 24x1.980				$ 16.69
11	5304520037		Screen, Door				$ 123.72
12	5304520035		Gasket, Door		Appelez-nous	-
13	5304514954		Door Assembly, Outer, Stainless, W/trim				$ 372.69
14	5304520038		Panel, Door				$ 104.50
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010300		Hinge, Door, Turquoise, Dual Spring   (Replaces: 139010308)				$ 164.86
29	808296701		Spacer, Door Handle, (2)				$ 15.92
39	316554010		Handle, Door/drawer, Stainless			Immediately	$ 168.44
41	5304500644		Support, Glass				$ 19.35
52	5304520856		Trim, Door, Black, Top				$ 79.62
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
3A	5304520787		Trim, Oven Door, Black, Side Vent				$ 61.66
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	5304505925		Insulation, Door, Upper				$ 15.17
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
