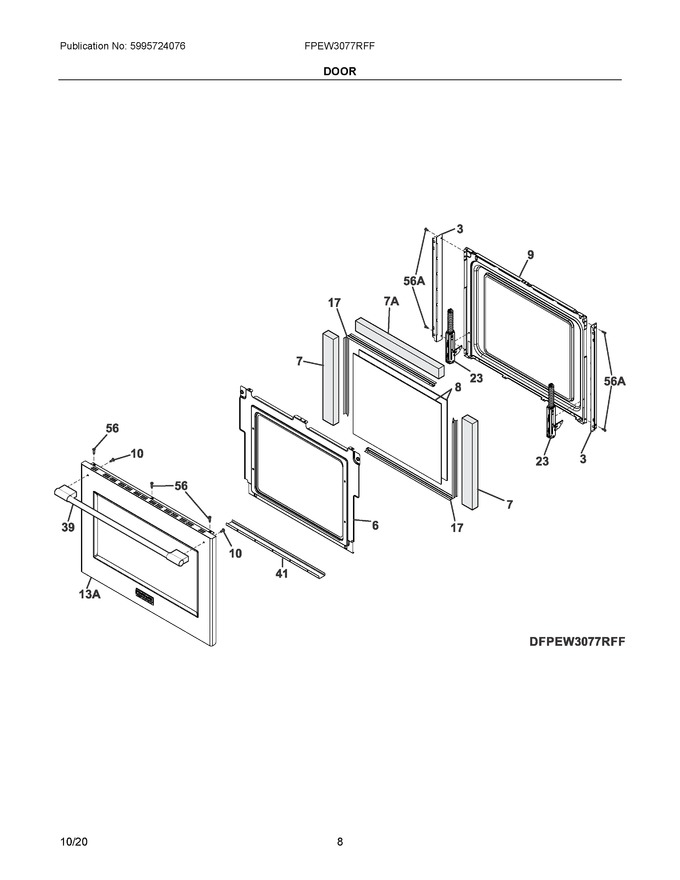

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304520787		Trim, Oven Door, Black, Side Vent				$ 61.66
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502504)			Immediately	$ 115.65
9	808474610		Liner, Oven Door, Black			Immediately	$ 129.68
10	5303310510		Screw, 10-24 X 0.625				$ 14.18
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010300		Hinge, Door, Dark Purple, Dual Spring				$ 164.86
39	808816703		Handle, Door/drawer, Stainless				$ 182.86
41	5304500644		Support, Glass				$ 19.35
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
13A	5304515578		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 387.14
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	807887501		Insulation, Door, Upper		Appelez-nous	-
7AA	5304505925		Insulation, Door, Upper				$ 15.17
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316008401		Washer, Handle Screw, Flat   (Replaces: 5304490894)				$ 11.34
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
