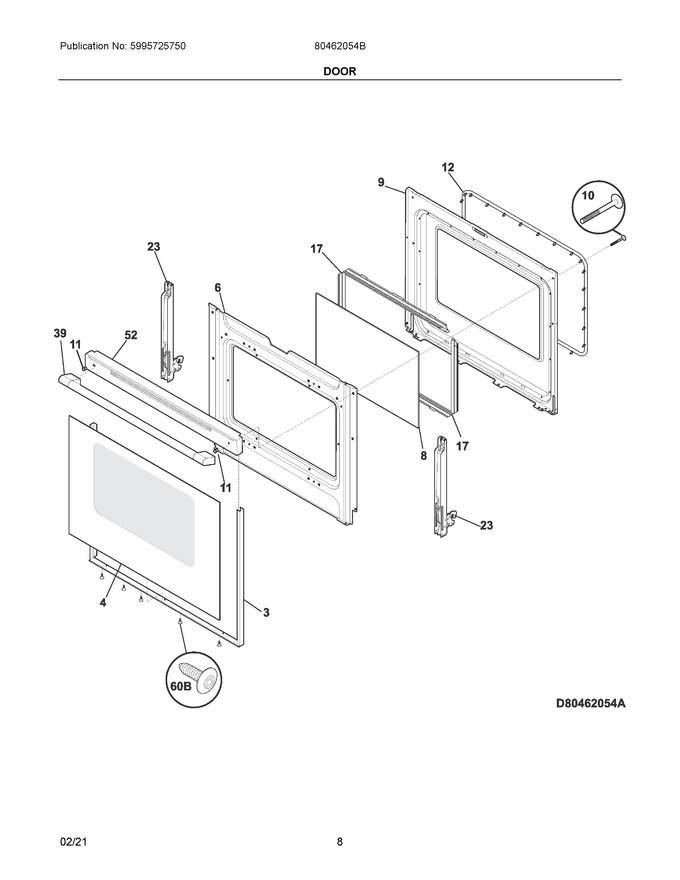

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935318 | Trim Kit-door, 3 Sided, White, W/tape (Replaces: 5303935393) |
|
Immediately | $ 83.64 | ||||
| 4 | 316559108 | Glass Assembly, Outer, White |
|
Immediately | $ 216.76 | ||||
| 6 | 316406328 | Shield, Wool |
|
$ 87.21 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner |
|
$ 116.95 | |||||
| 9 | 5304529999 | Liner, Oven Door (Replaces: 316423707) |
|
$ 147.12 | |||||
| 10 | 5304507924 | Screw, Handle Mtg., #10-24 X 2, (2) (Replaces: 316439505) |
|
Immediately | $ 16.48 | ||||
| 11 | 5304494420 | Nut, Hour Glass, Handle Mtg. |
|
$ 12.76 | |||||
| 12 | 316405000 | Seal, Oven Door |
|
Immediately | $ 179.17 | ||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 25.02 | ||||
| 23 | 316575915 | Hinge, Oven Door, Lilac (Replaces: 316575913) |
|
$ 166.09 | |||||
| 39 | 5304524591 | Handle, Door, White |
|
$ 214.62 | |||||
| 52 | 316575500 | Cap, Door Trim, White |
|
Immediately | $ 122.09 | ||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NI | 5304414648 | Screw, Handle Set |
|
$ 14.18 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
