SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

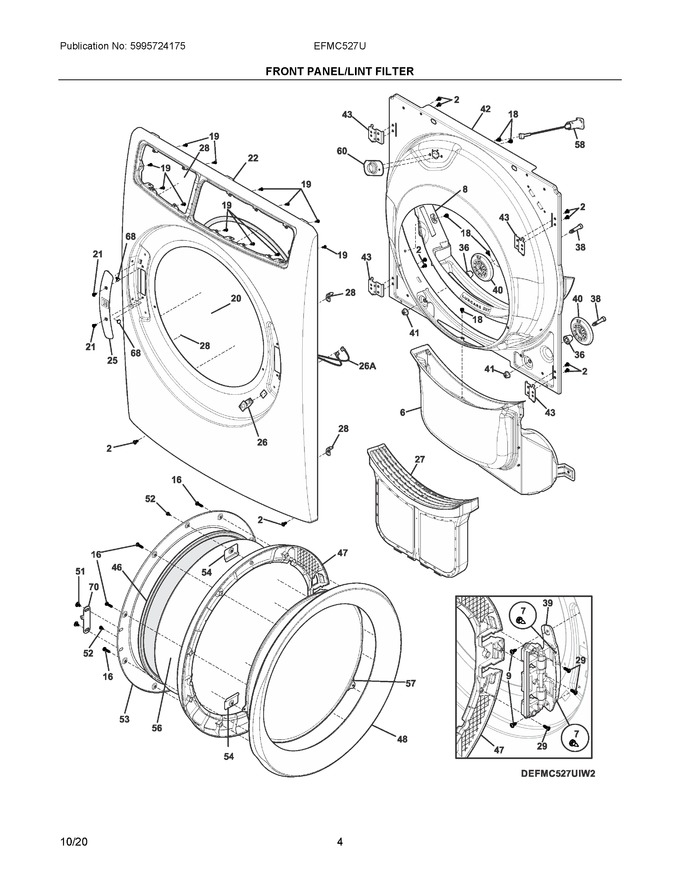

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
6	5304521401		Duct Assembly, Air, W/foam Top Seal			Immediately	$ 148.92
7	137285100		Screw, Pan Head, #8-18x.750				$ 17.53
8	5304534450		Grill Assembly, Lint, W/moisture Sens   (Replaces: 5304515377)			Immediately	$ 147.56
9	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
20	5304505111		Gasket, Foam, Front Panel				$ 81.91
21	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
22	5304515428		Panel, Dryer Front, Titanium				$ 292.06
25	5304513568		Latch Assembly, Door, W/cover			Immediately	$ 28.43
26	134813664		Switch, Door, Grey			Immediately	$ 50.45
27	STOP MORE INFO RE		Filter Assembly, Lint, Clamshell   (Replaces: 5304513574)		Appelez-nous	-
28	137034500		Clip, Mounting, Cabinet Front				$ 43.24
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
36	5304523154		Spacer, Drum Roller			Immediately	$ 26.76
38	5304523151		Shaft, Drum Roller, Shoulder Bolt			Immediately	$ 21.11
39	5304505133		Hinge Assembly, Nest				$ 181.69
40	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 30.31
41	5304523153		Nut, Lock			Immediately	$ 10.94
42	5304521387		Bulkhead, Front, White				$ 188.59
43	5304505118		Bracket, Bulkhead, (4)				$ 14.46
46	5304505010		Gasket, Door Seal, Inner			Immediately	$ 98.46
47	5304505115		Frame, Inner Door				$ 172.78
48	5304505388		Frame, Outer, Chromed, Door				$ 276.42
51	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
52	131243700		Screw, Ph, 8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	5304504995		Inner Door, Ring, Metal				$ 203.15
54	5304505012		Clamp, Door Glass, (2)			Immediately	$ 18.79
56	5304504999		Glass, Dryer Door, Black			Immediately	$ 167.09
57	5304505119		Shield, Heat, Door			Immediately	$ 117.85
58	5304521399		Lamp Assembly, Drum, W/harness				$ 98.08
60	5304521476		Bracket, Support, Drum Lamp				$ 18.79
68	134742002		Plug, Hinge Hole, Grey				$ 15.60
70	5304536127		Striker, Latch, Black   (Replaces: 5304505013)			Immediately	$ 18.50
26A	5304505258		Harness, Wiring, Door Switch				$ 44.39
NIA	5304513601		Screw, Grill Assembly, (2)				$ 13.01
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25

    View Diagram in Separate Window       Print Part List
