View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter

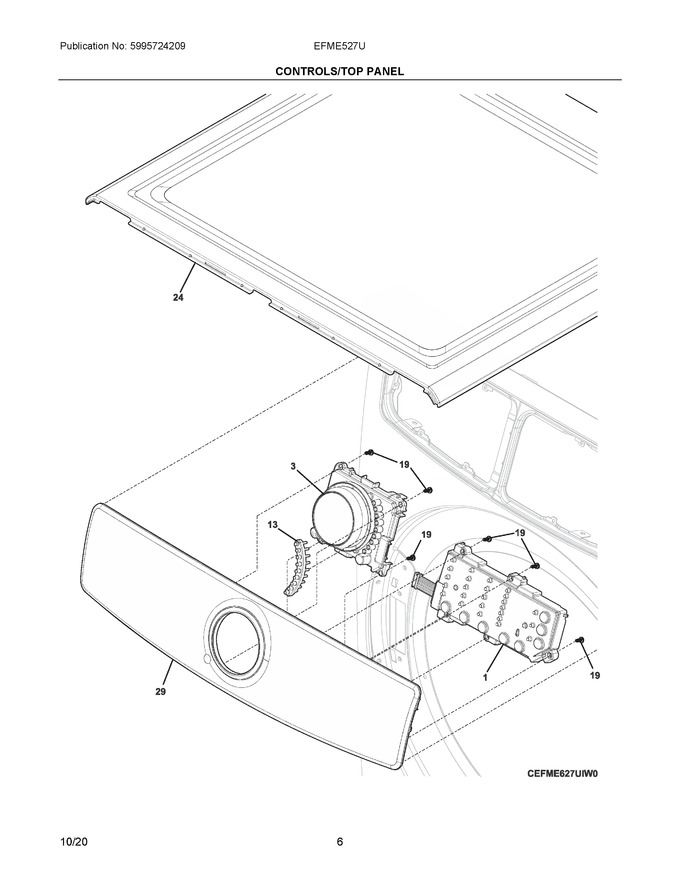

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304521513 | Board Assy, Ui Programmed, Satellite, W/housing-screw |
|
Immediately | $ 246.86 | ||||
| 3 | 5304521446 | Knob Assembly, Complete, W/boards |
|
$ 265.32 | |||||
| 13 | 5304505064 | Diffuser, Light |
|
$ 15.23 | |||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 6.51 | |||||
| 24 | 5304505081 | Top Panel, White |
|
$ 227.48 | |||||
| 29 | 5304515406 | Console Assembly, W/overlay |
|
$ 220.88 | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NI | 5304521235 | Harness, Wiring, Main |
|
$ 223.58 | |||||
| NI | 137150200 | Terminal Block Kit, Main |
|
$ 31.90 |
