View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

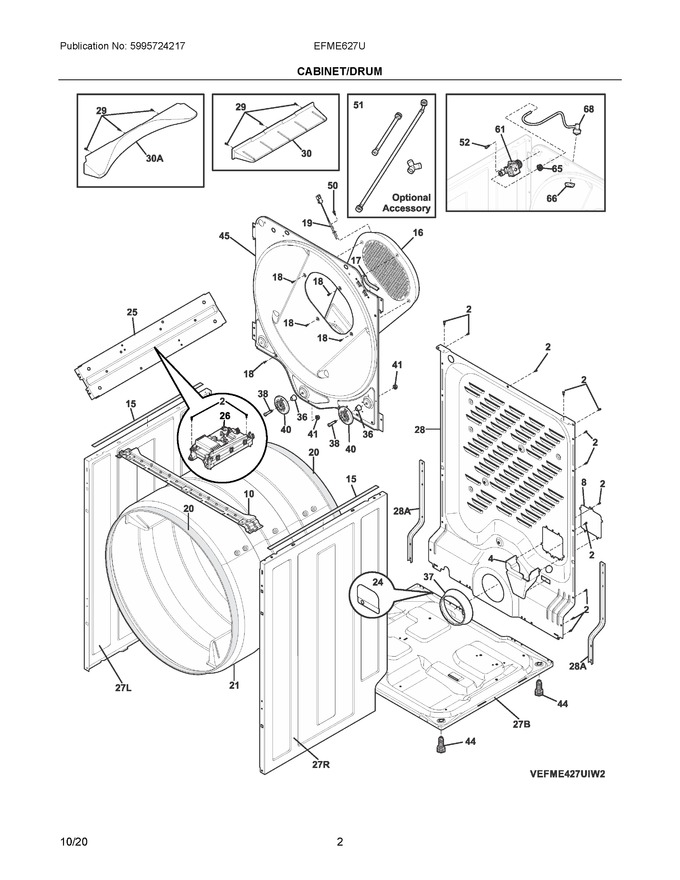

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 134792100 | Bracket, Main, Terminal |
|
$ 29.07 | |||||
| 8 | 134694400 | Cover, Terminal Block |
|
$ 72.18 | |||||
| 10 | 5304513567 | Bracket, Front Panel |
|
- | |||||
| 15 | 137031800 | Cushion, Vibration, Top Panel |
|
Immediately | $ 8.51 | ||||
| 16 | 5304513571 | Duct Assembly, Heat, Rear |
|
$ 139.53 | |||||
| 17 | 134792900 | Protector, Edge, Right Top Front, 85.0+/-1.5 |
|
$ 13.46 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 5304520302 | Thermistor, Inlet |
|
Immediately | $ 53.96 | ||||
| 20 | 5304499489 | Seal, Felt, Purple Stitches, Drum |
|
Immediately | $ 56.69 | ||||
| 21 | 137610710 | Drum, 2 Rib 38 |
|
Immediately | $ 426.67 | ||||
| 24 | 137537100 | Cover, Back Sheet, Cutout |
|
- | |||||
| 25 | 137567001 | Bracket, Mounting, Main Cntl Box |
|
$ 36.87 | |||||
| 26 | 5304533199 | Main Board, Assembly, W/housing, & Harness (Replaces: 5304525689) |
|
Immediately | $ 322.43 | ||||
| 28 | 137560425 | Panel, Backsheet (Replaces: 137560413) |
|
Immediately | $ 235.53 | ||||
| 29 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 30 | 137610600 | Vane, Drum, Straight |
|
Immediately | $ 74.42 | ||||
| 36 | 5304523154 | Spacer, Drum Roller |
|
Immediately | $ 26.76 | ||||
| 37 | 137553500 | Cover, Exhaust Tube |
|
$ 47.66 | |||||
| 38 | 5304523151 | Shaft, Drum Roller, Shoulder Bolt |
|
Immediately | $ 21.11 | ||||
| 40 | 5304523152 | Roller Wheel, Assembly, W/bearing |
|
Immediately | $ 30.31 | ||||
| 41 | 5304523153 | Nut, Lock |
|
Immediately | $ 10.94 | ||||
| 44 | 134158001 | Leveling Leg, Screw |
|
Immediately | $ 25.02 | ||||
| 45 | 5304521407 | Bulkhead, Panel, Rear |
|
Immediately | $ 201.80 | ||||
| 50 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 51 | 5304508988 | Install Kit, Steam Dryer, Optional, Accessory (Replaces: 5304495002) |
|
$ 37.79 | |||||
| 52 | 137573900 | Screw, Comb Pan Hd, 1/4-14x.375 |
|
- | |||||
| 61 | 137544800 | Valve, Mist Lowprofile |
|
Immediately | $ 78.44 | ||||
| 65 | 137017200 | Grommet, Misting Tube |
|
$ 3.55 | |||||
| 66 | 5304529773 | Nut, Nozzle (Replaces: 137017300) |
|
$ 77.30 | |||||
| 68 | 5304529773 | Nozzle Assembly, Mist System, W/tubing-nut (Replaces: 5304521480) |
|
$ 77.30 | |||||
| 27B | 134690203 | Base, Dryer |
|
$ 273.58 | |||||
| 27L | 134712697 | Panel, Left Side, Titanium |
|
Immediately | $ 237.02 | ||||
| 27R | 134712797 | Panel, Right Side, Titanium |
|
Immediately | $ 256.10 | ||||
| 28A | 137029801 | Bracket, Reinforcement, Backsheet |
|
$ 33.26 | |||||
| 30A | 5304531775 | Vane, Drum, Mixing (Replaces: 137610500) |
|
$ 20.24 | |||||
| NI | 137240501 | Brace, Side Panel |
|
- | |||||
| NIA | 5304521235 | Harness, Wiring, Main |
|
$ 223.58 | |||||
| NIA | 5304506746 | Shield, Mist Valve |
|
$ 43.38 | |||||
| NIA | 5304500486 | Seal, Felt, Red Stitches, Drum |
|
$ 46.78 | |||||
| NIA | 5304521493 | Screw, Pn Hd, #10-16 X .375, 7.85mm |
|
- | |||||
| NIA | 131205500 | Screw, 1/4-14 X 0.625 |
|
$ 13.46 | |||||
| NIA | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| NIB | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NIB | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 13.46 | |||||
| NIB | 137150200 | Terminal Block Kit, Main |
|
$ 31.90 | |||||
| NIC | 131303300 | Screw, Pan Head, 10-16ab X 0.500, Locking |
|
- |
