SELECT A DIAGRAM

01 - Cover Sheet

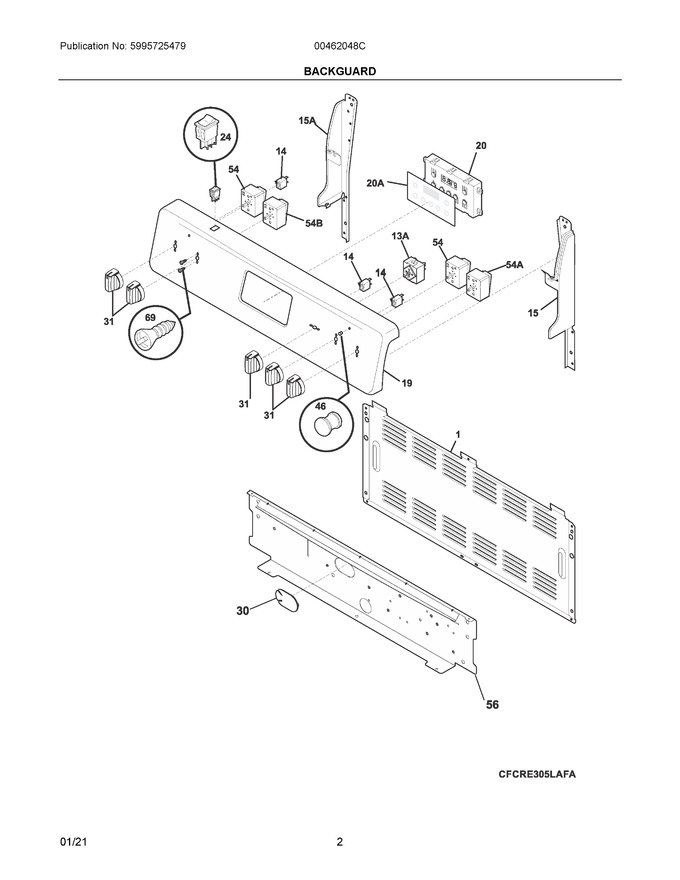

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	808754505		#vp#support Backguard White Rh				$ 61.66
19	5304521894		Panel, Backguard, White		Appelez-nous	-
20	5304521889		Control Electronic Es100			Immediately	$ 297.41
24	5304527842		Switch Rocker White   (Replaces: 5304515133)			Immediately	$ 16.13
30	316577600		Plug, Button, Oval, Harness				$ 14.89
31	5304508957		Knob Control White-pur			Immediately	$ 18.95
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch Control Small Element   (Replaces: 5304506424)			Immediately	$ 80.34
56	316234029		#vp#shield Backguard White Inn				$ 87.17
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304522964		Switch, Infinite, Warmer				$ 59.16
15A	808754506		Support Backguard White Lh				$ 65.98
20A	316220728		Overlay Clock White			Immediately	$ 39.44
54A	140173679014		Switch Infinite Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
54B	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
