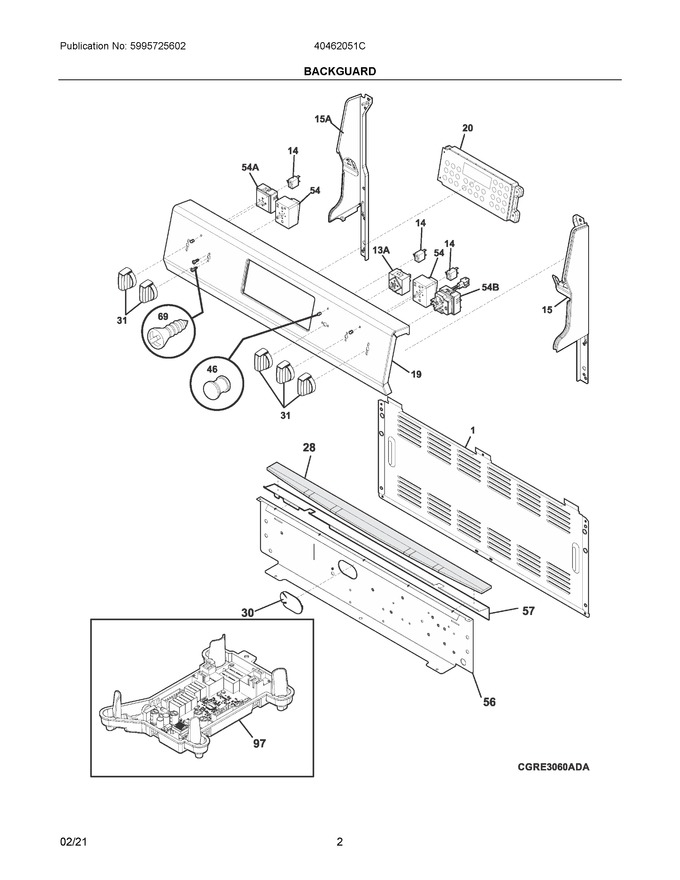

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304509891		Panel, Backguard, Stainless				$ 280.20
20	5304524995		Control, W/overlay, Voltron				$ 293.27
28	316528700		Insulation, Manifold Panel				$ 89.31
30	316577600		Plug, Button, Oval, Harness				$ 14.89
31	5304509889		Knob, Stainless				$ 70.52
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner				$ 66.74
57	808950202		Shield, Steam				$ 23.39
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 330.67
13A	5304522964		Switch, Infinite, Warmer				$ 59.16
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
54B	807004702		Switch, Triple, Infinite			Immediately	$ 125.69
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304522011		Harness, Communication				$ 31.10
NI	5304523297		Harness, Electrical				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
