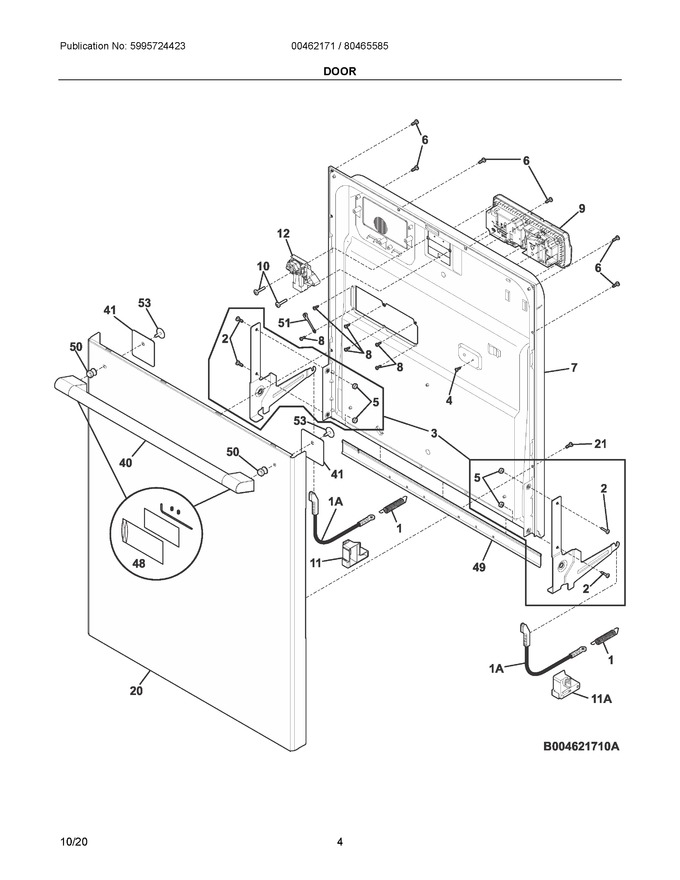

03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154579101 | Spring, Friction Pulley, (2) |
|
Immediately | $ 40.50 | ||||
| 2 | 154093301 | Screw, Arm Assy, (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 5 | 154079601 | Nut, Arm Assy, And Handle Mtg. |
|
$ 0.41 | |||||
| 6 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 7 | 5304520007 | Liner Assembly, Door, W/wiper, & Reinforcement |
|
Immediately | $ 155.43 | ||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304506521 | Dispenser, Det/rinse Aid, W/level Ind. |
|
Immediately | $ 99.05 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 11 | 154579201 | Pulley, Friction, Lh |
|
Immediately | $ 47.48 | ||||
| 12 | 5304525218 | Latch Assembly, Service Kit, W/connectors, And Heatshrink |
|
Immediately | $ 49.89 | ||||
| 20 | 5304525320 | Door Assembly, W/insulation, Black Stainless |
|
$ 203.41 | |||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| 40 | 5304525321 | Handle Assembly, Towel Bar, Black Stainless |
|
$ 216.88 | |||||
| 41 | 154603401 | Plate, Handle Support, (2) |
|
Immediately | $ 16.30 | ||||
| 48 | 5304525318 | Set Screw Kit, Handle, W/allen Wrench |
|
$ 16.63 | |||||
| 49 | 5304500204 | Gasket, Door, Bottom |
|
Immediately | $ 29.79 | ||||
| 50 | 5304494420 | Nut, Hour Glass, Handle Mtg. |
|
$ 12.76 | |||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 53 | 5304414648 | Screw, Handle Mtg., #10-24 X .625 (Replaces: 316439510) |
|
$ 14.18 | |||||
| 11A | 154579202 | Pulley, Friction, Rh |
|
Immediately | $ 47.48 | ||||
| 1A | 154756401 | Cable, Friction Pulley, (2) (Replaces: 154578801) |
|
Immediately | $ 11.89 | ||||
| NI | 5304538695 | Insulation, Door (Replaces: 154253201) |
|
- | |||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 |
