View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub

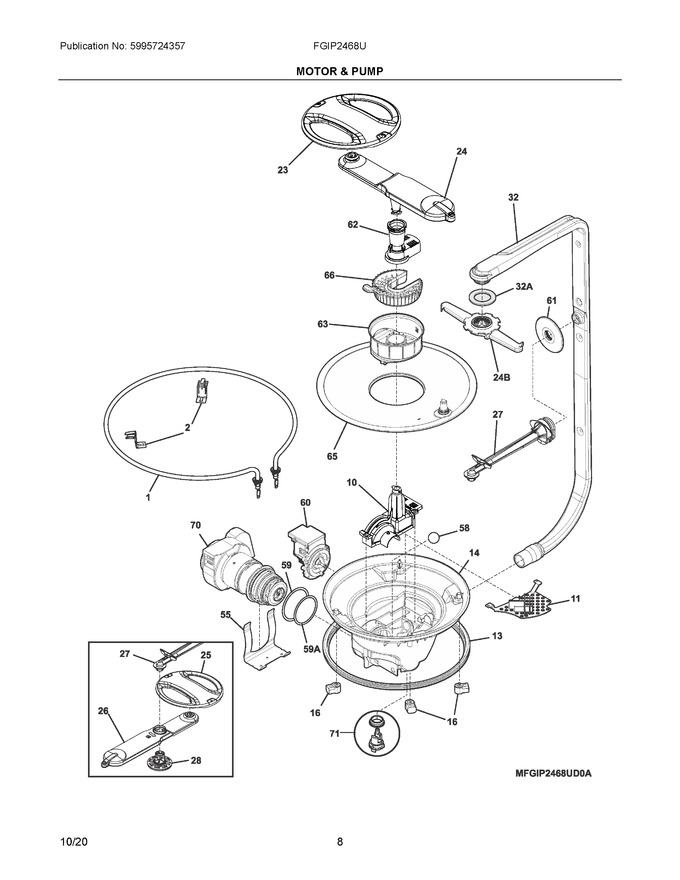

05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154825001 | Heater, Round |
|
Immediately | $ 91.19 | ||||
| 2 | 154465101 | Bracket, Heater, (2) |
|
Immediately | $ 11.34 | ||||
| 10 | 5304517590 | Cover, Volute |
|
$ 11.92 | |||||
| 11 | 807111601 | Plate, Pump Inlet |
|
Immediately | $ 17.72 | ||||
| 13 | 154246801 | Gasket, Sump |
|
$ 52.17 | |||||
| 14 | 154723801 | Sump Assembly |
|
Immediately | $ 60.96 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 40.40 | ||||
| 23 | 5304517982 | Orbital Sprayer, Assembly, Blue, Lower Arm, W/heat |
|
Immediately | $ 78.53 | ||||
| 24 | 5304517981 | Arm, Orbital Sprayer, Grey, Lower, W/weight |
|
Immediately | $ 89.21 | ||||
| 25 | 5304517890 | Orbital Sprayer, Assembly, Blue, Middle Arm |
|
Immediately | $ 39.56 | ||||
| 26 | 5304517891 | Arm, Orbital Sprayer, Grey, Middle, W/weight |
|
Immediately | $ 83.21 | ||||
| 27 | 5304517892 | Manifold Assembly, Spray Arm, Middle, W/bellow |
|
Immediately | $ 39.76 | ||||
| 28 | 5304517893 | Lock Nut, Spray Arm, Middle |
|
$ 10.85 | |||||
| 32 | 5304507087 | Tube, Delivery (Replaces: 154824201) |
|
Immediately | $ 60.53 | ||||
| 55 | 5304534830 | Bracket, Motor (Replaces: 154595901) |
|
$ 5.54 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 55.99 | ||||
| 59 | 154246901 | O-ring, Rear |
|
Immediately | $ 56.70 | ||||
| 60 | A00126401 | Drain Pump Assy (Replaces: 5304492415) |
|
Immediately | $ 143.00 | ||||
| 61 | 5304532204 | Grommet, Delivery Tube (Replaces: 5304506517) |
|
Immediately | $ 8.58 | ||||
| 62 | 5304532954 | Support, Lower Arm (Replaces: 5304517589) |
|
Immediately | $ 7.57 | ||||
| 63 | 5304506533 | Base, Soil Director |
|
Immediately | $ 18.68 | ||||
| 65 | 154283005 | Filter Assy, Grey |
|
$ 253.03 | |||||
| 66 | 5304532206 | Trap, Glass (Replaces: 5304506518) |
|
Immediately | $ 11.23 | ||||
| 70 | 154853801 | Motor & Pump Assy, Variable Speed (Replaces: 5304526748) |
|
Immediately | $ 316.01 | ||||
| 71 | 154762601 | Sensor, Turbidity, Snap-in, W/seal |
|
Immediately | $ 77.97 | ||||
| 24B | 5304506516 | Spray Arm, Assembly, Upper |
|
Immediately | $ 32.14 | ||||
| 32A | 154406401 | Gasket, Delivery Tube |
|
Immediately | $ 15.46 | ||||
| 59A | 154247001 | O-ring, Front |
|
Immediately | $ 56.70 | ||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NIA | 807048001 | Flapper, Valve |
|
Immediately | $ 8.90 | ||||
| NIA | 154754901 | Screw, Sump Mtg, 8-16, (4) |
|
Immediately | $ 4.26 | ||||
| NIA | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| NIA | 154779601 | Screw, Ph, 8-10, (2) |
|
$ 1.42 | |||||
| NIA | 154106202 | Nut, Heater, (2) |
|
Immediately | $ 18.32 | ||||
| NIB | 154491101 | Screw, Delivery Tube |
|
$ 3.62 | |||||
| NIB | 154289801 | Shield, Heater Terminal |
|
$ 7.33 | |||||
| NIB | 154741501 | Screw, Drain Motor Mtg, (3) |
|
$ 13.46 |
