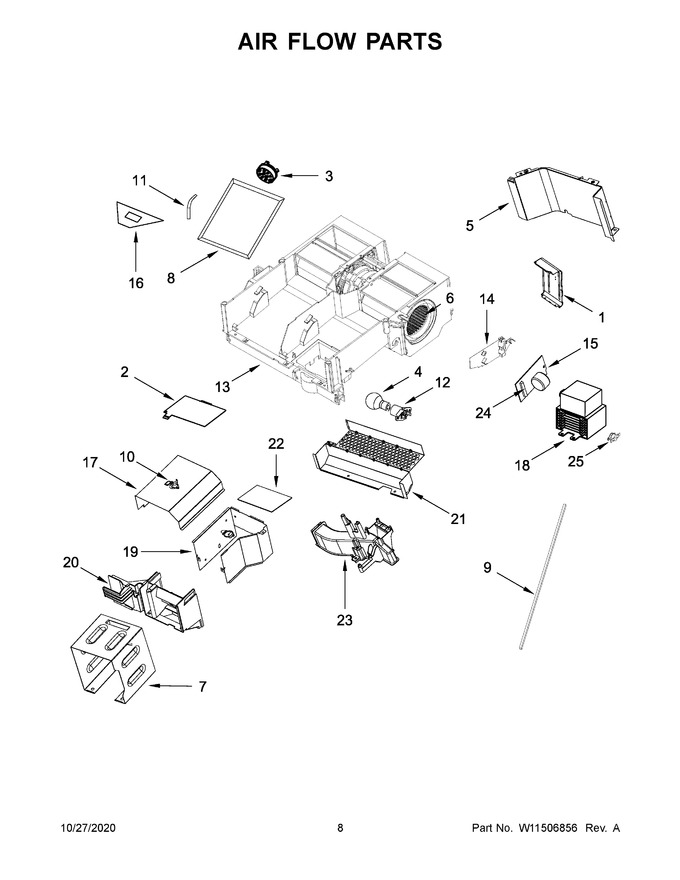

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11300398 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 4 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 5 | W10533487 | Plate, Air Guide |
|
- | |||||
| 6 | W11613599 | Motor, Fan (Replaces: W11409088) |
|
Immediately | $ 171.78 | ||||
| 7 | W10712444 | Housing, Damper |
|
$ 82.58 | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 9 | W10571180 | Seal, Foam |
|
$ 16.39 | |||||
| 10 | W11661583 | Thermostat, Cavity (Replaces: W10654514) |
|
$ 54.26 | |||||
| 11 | W10557537 | Sensor, Convection |
|
$ 71.07 | |||||
| 12 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 13 | W11382018 | Baseplate, Air Guide |
|
- | |||||
| 14 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 15 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 16 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 17 | W10533112 | Outlet, Cavity (back) |
|
- | |||||
| 18 | W11230995 | Magnetron (Replaces: W11188557) |
|
Immediately | $ 317.81 | ||||
| 19 | W10533483 | Duct, Cavity (rear) |
|
- | |||||
| 20 | W10570209 | Duct, Cavity (front) |
|
$ 32.99 | |||||
| 21 | W10629803 | Shield, Finger (includes Seal) |
|
$ 30.70 | |||||
| 22 | W10531724 | Glass, Lamp |
|
Immediately | $ 29.90 | ||||
| 23 | W10758886 | Assembly, Air Guide Grill |
|
- | |||||
| 24 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 25 | W11553234 | Thermostat, Magnetron (Replaces: W10591803) |
|
$ 37.45 |
