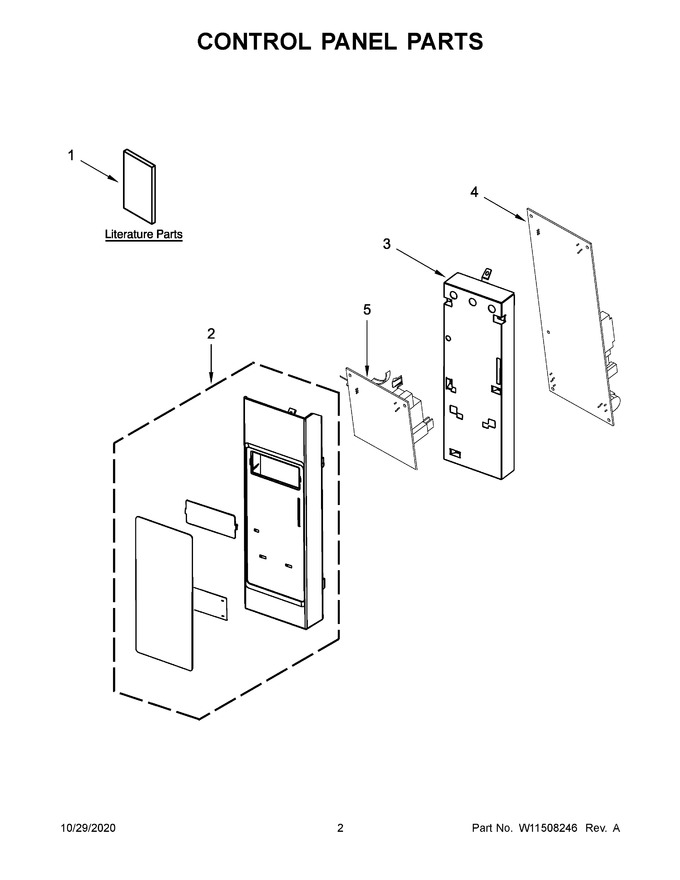

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11401909 | Installation Instructions |
|
- | |||||
| 2 | W11034406 | Assembly, Control Panel (white) |
|
$ 307.96 | |||||
| 3 | W10639186 | Backer, Control Panel |
|
$ 31.91 | |||||
| 4 | W11467687 | Pcba, Appliance Control Unit (Replaces: W11416317) |
|
Immediately | $ 245.90 | ||||
| 5 | W11194422 | Pcba, User Interface (Replaces: W11131399) |
|
$ 235.40 | |||||
| 1A | W10841425 | Use And Care Guide |
|
- | |||||
| 1B | W11265265 | Quick Reference Guide |
|
- | |||||
| 1C | W11307971 | Tech Sheet |
|
- | |||||
| 2A | W10891019 | Assembly, Control Panel (stainless) (Replaces: W10848076) |
|
Immediately | $ 308.13 |
