SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories

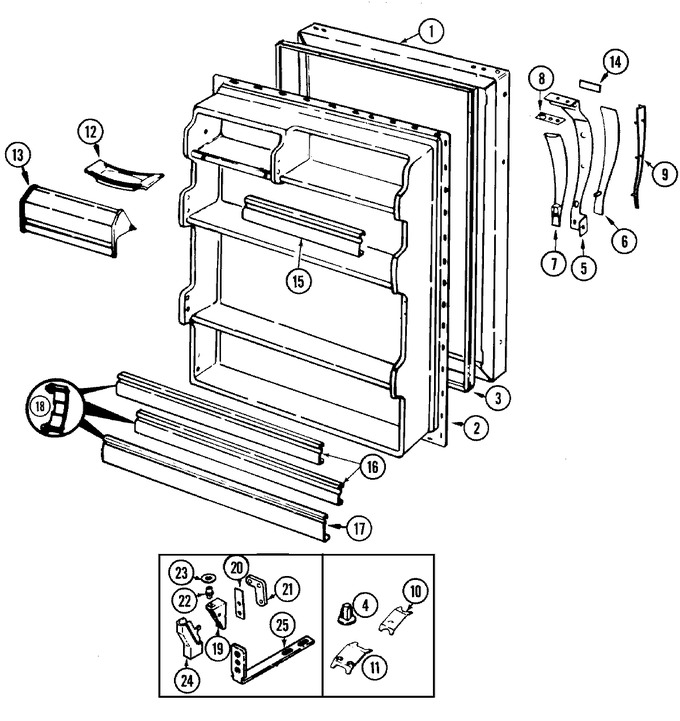

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-5-AM		Panel, Outer Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69445-1		Liner, F.f. Door		Appelez-nous	-
3	70020-4		Gasket, Door		Appelez-nous	-
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	69300-4		Handle, Door----na		Appelez-nous	-
6	68016-6		Handle Insert, Front		Appelez-nous	-
7	65275-53		Screw		Appelez-nous	-
7	60445-4		Insert, Handle (back)		Appelez-nous	-
8	69301-1		Shim, Handle		Appelez-nous	-
9	68017-3		Insert, Vinyl Clad		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	69058-2		Door, Dairy		Appelez-nous	-
14	60603-28		Insert, Nameplate		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-344)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-349)				$ 129.55
18	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
19	65275-51		Screw, Lower Hinge		Appelez-nous	-
19	69516-2		Hinge, Lower (blk)		Appelez-nous	-
20	69510-1		Shim, Lower Hinge		Appelez-nous	-
21	403100-1		Screw		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	69845-1		Pin, Lower Hinge				$ 44.55
23	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
24	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
24	69256-2		Stop, Door		Appelez-nous	-
25	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
