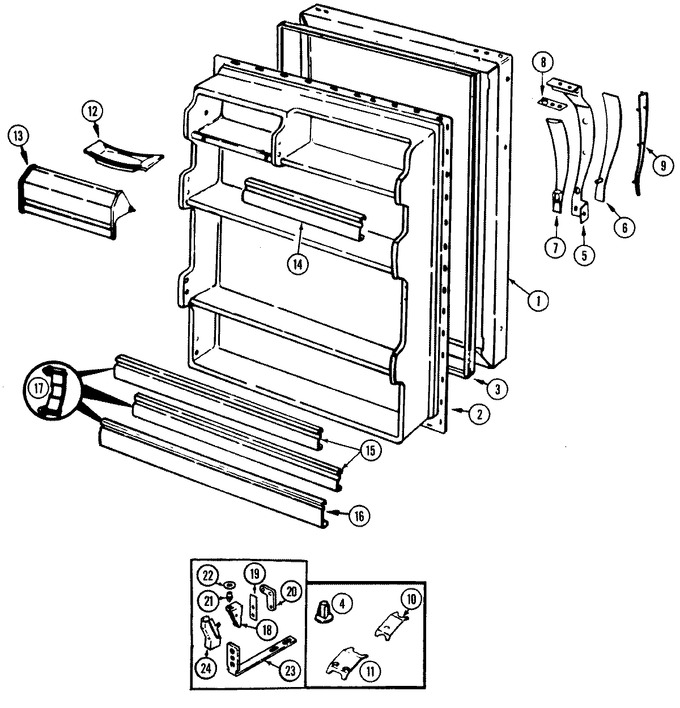

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-5-AM | Panel, Outer Door | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69445-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 3 | 70020-4 | Gasket, Door | 10 |
|
- | ||||
| 4 | 55782-10 | Plug Button, Hdle & Door Stop | 10 |
|
- | ||||
| 4 | 55782-6 | Plug Button (almond) | 10 |
|
- | ||||
| 5 | 60603-28 | Insert, Nameplate | 10 |
|
- | ||||
| 5 | 69300-4 | Handle, Door----na | 10 |
|
- | ||||
| 5 | 9986-122 | Screw | 10 |
|
- | ||||
| 6 | 68016-6 | Handle Insert, Front | 10 |
|
- | ||||
| 7 | 65275-53 | Screw | 10 |
|
- | ||||
| 7 | 60445-4 | Insert, Handle (back) | 10 |
|
- | ||||
| 8 | 69301-1 | Shim, Handle | 10 |
|
- | ||||
| 9 | 68017-3 | Insert, Vinyl Clad | 10 |
|
- | ||||
| 10 | 69257-1 | Clip, Handle | 10 |
|
- | ||||
| 11 | 60123-2 | Clip, Stop Screw | 10 |
|
- | ||||
| 12 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 13 | 69058-2 | Door, Dairy | 10 |
|
- | ||||
| 14 | WP61003045 | Trim, Door Shelf (Replaces: 65151-344) | 10 |
|
$ 129.55 | ||||
| 15 | WP61003045 | Trim, Door Shelf (Replaces: 65151-95) | 10 |
|
$ 129.55 | ||||
| 16 | WP61003045 | Trim, Door Shelf (Replaces: 65151-348) | 10 |
|
$ 129.55 | ||||
| 17 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 18 | 403100-1 | Screw | 10 |
|
- | ||||
| 18 | 69516-2 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 19 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 19 | 54233-7 | Washer | 10 |
|
- | ||||
| 20 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 20 | 414012-1 | Screw | 10 |
|
- | ||||
| 21 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 22 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 22 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 22 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 22 | 65275-48 | Screw | 10 |
|
- | ||||
| 23 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 24 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- |
