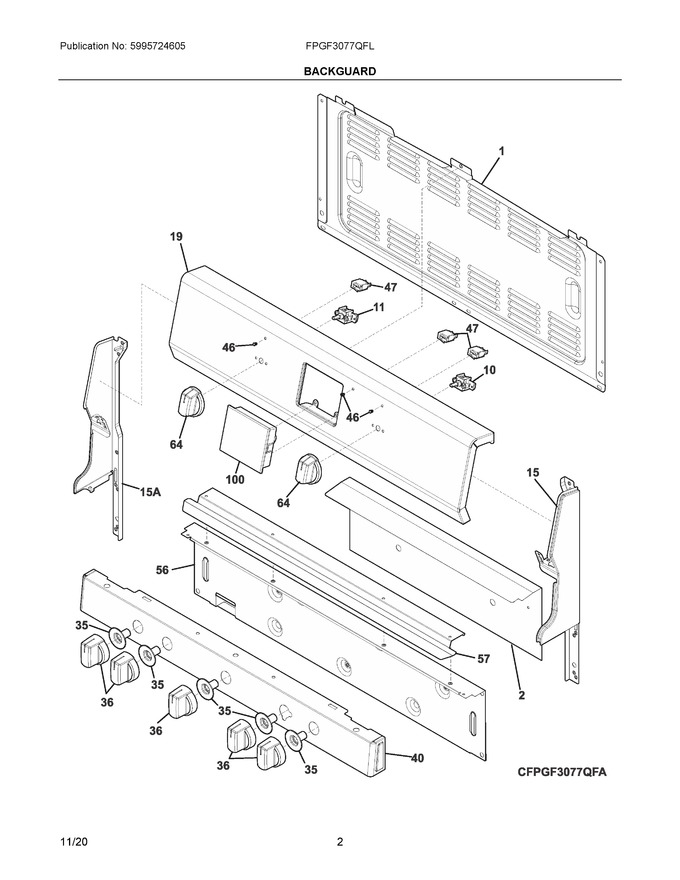

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
2	316497602		Shield, Backguard, Inner		Appelez-nous	-
10	808843102		Potentiometer, Oven Temp				$ 148.13
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 71.59
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304496878		Panel, Backguard, Stainless				$ 297.13
35	316354300		Shield, Heat, Knob				$ 10.63
36	808694401		Knob, Top Valve, Stainless				$ 147.88
40	316606117		Panel-manifold, Stainless				$ 194.74
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 27.30
56	316230708		Shield, Backguard, Inner				$ 61.66
57	808754601		Deflector, Backguard				$ 77.97
64	809020701		Knob, Oven Control, (2)		Appelez-nous	-
100	808751524		Control Assembly, Complete, Hmi				$ 327.24
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304505678		Harness, Backguard				$ 60.25
NI	808858402		Harness, Wiring, Temp Probe, Mdl/communicatn				$ 77.36
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
