01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

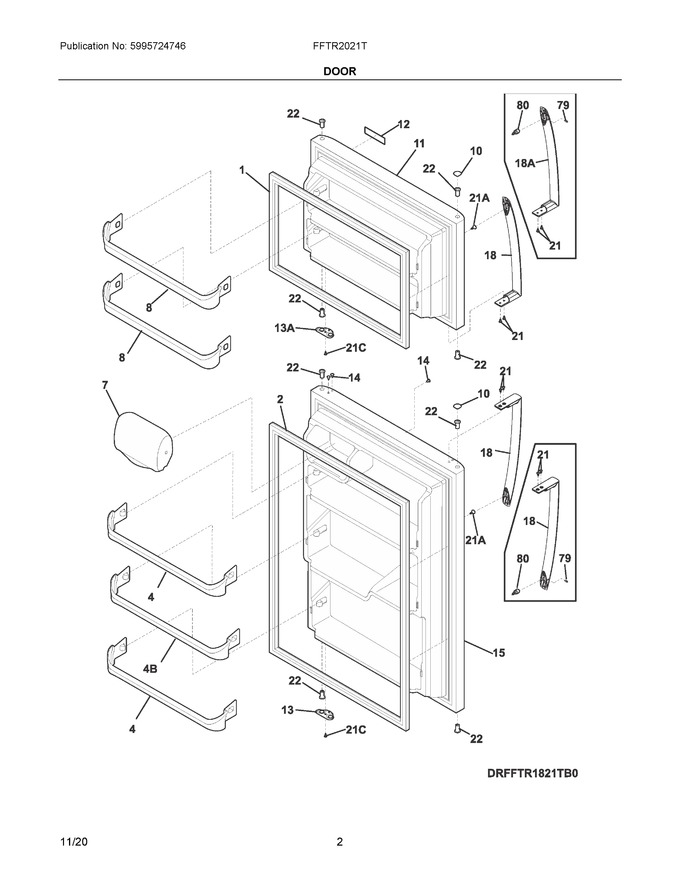

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 187.11
2	242193214		Gasket-refr Door, Black, Magnetic				$ 190.85
4	240534901		Rack-door			Immediately	$ 47.03
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 36.41
8	240534801		Rack-door			Immediately	$ 49.62
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
11	242178015		Door, Freezer, Stainless, Complete Assy				$ 507.56
12	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
13	240312422		Door Stop, Black, Ref				$ 15.17
14	240494001		Button, Plug, White			Immediately	$ 18.20
14	240494007		Plug-button, Gray			Immediately	$ 15.92
14	240494003		Plug-button, Black				$ 18.20
15	242178112		Door, Refrigerator, Stainless, Complete				$ 597.57
18	5304511368		Handle, Door, Stainless, Ref Rhs, W/set Screw				$ 219.17
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 7.59
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	5304511369		Handle, Door, Stainless, Frz Rhs, W/set Screw				$ 251.78
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
4B	240534701		Rack-door, 4b			Immediately	$ 28.80
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NIA	241601001		Wrench, Allen		Appelez-nous	-
