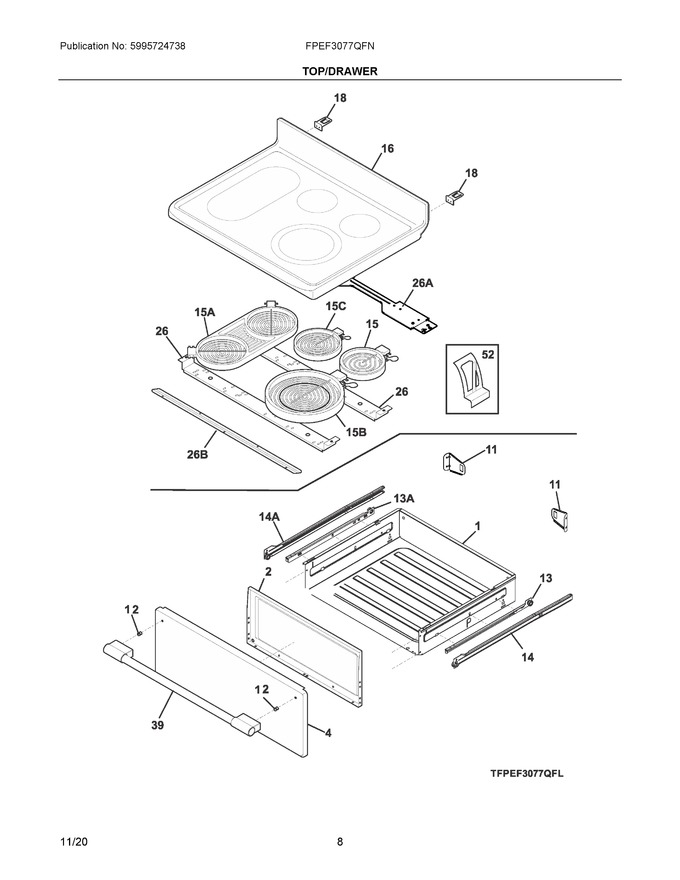

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304511907		Panel, Drawer, Stainless, Outer				$ 70.83
10	5304414648		Screw, Handle Set				$ 14.18
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
12	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304513627		Top, Black				$ 451.22
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304512926		Channel, Element Support				$ 46.22
39	5304494423		Handle, Asm			Immediately	$ 314.69
52	316461700		Clip, Element Mtg				$ 12.05
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	316280701		Element, Double 7", Surface, 4400w, W/bridge				$ 273.34
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15C	5304521951		Element, Warmer, 100 W			Immediately	$ 64.46
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	5304525257		Harness, Surface, R19		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
