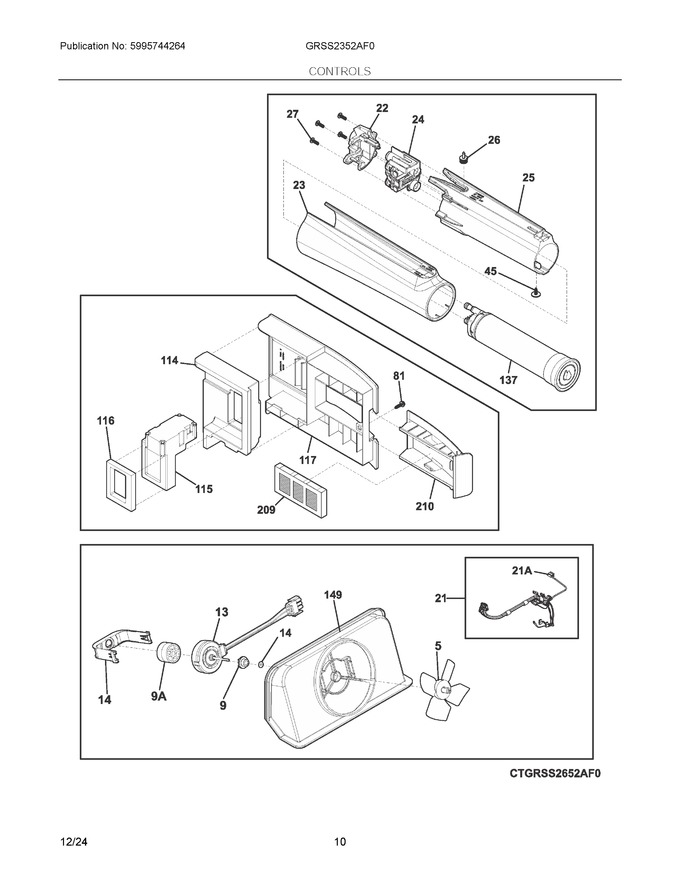

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 242219302 | Blade, Condenser Fan, Fan |
|
Immediately | $ 17.44 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 140282033103 | Motor, Evaporator Fan, W/harness (Replaces: 809069206) |
|
Immediately | $ 56.30 | ||||
| 14 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 15 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 21 | 5304526981 | Harness Assembly, Low Side, Dc, Evap Fan |
|
- | |||||
| 22 | 5304526050 | Base, Support, Water Filter |
|
Immediately | $ 14.46 | ||||
| 23 | 140293415018 | Cover, Water Filter (Replaces: 5304526051) |
|
- | |||||
| 24 | 140156010054 | Manifold, Water Filter (Replaces: 5304524817) |
|
$ 30.57 | |||||
| 25 | 5304526053 | Housing Assembly, Water Filter, W/drip Pad |
|
$ 23.86 | |||||
| 26 | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.26 | |||||
| 27 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 114 | 5304525913 | Insulation, Damper Cover |
|
$ 10.62 | |||||
| 115 | 5303918899 | Damper, Motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper, Foam |
|
$ 9.22 | |||||
| 117 | 5304525914 | Cover, Damper |
|
Immediately | $ 23.82 | ||||
| 137 | FPPWFU01 | Filter, Water, Wf-1, Frig Purepour |
|
Immediately | $ 80.38 | ||||
| 149 | 5304527013 | Shroud, Evaporator Fan, W/seal |
|
Immediately | $ 32.62 | ||||
| 209 | PAULTRA2 | Pure Air Ultra 2 Air Filter, 8 |
|
Immediately | $ 42.18 | ||||
| 210 | 5304525915 | Housing, Air Filter |
|
$ 14.46 | |||||
| 21A | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 84.60 | ||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 | |||||
| NI | 242220119 | Tube, Water, 97.5", Natural, Ilter, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NI | 8582422201557 | Tube, Water, 93.5", Brown/tan, Valve To Filter (Replaces: 242220126) |
|
Immediately | $ 11.06 |
