01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

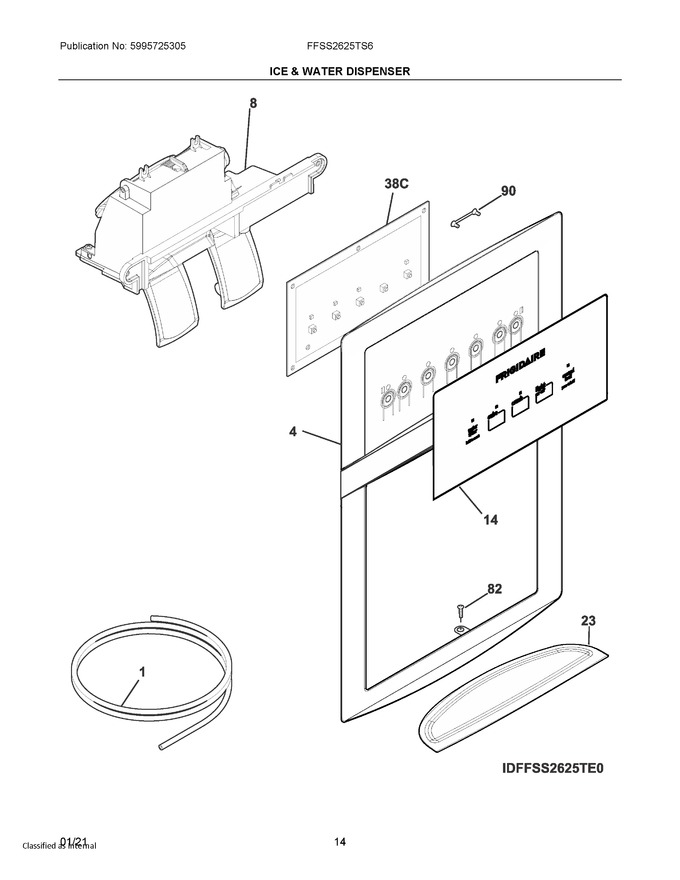

1	218976438		Tube, Water, 62", Natural, Door, To Dispenser			Immediately	$ 20.56
4	241946822		Cover-module, Grey				$ 87.09
8	242083311		Module-dispenser, Assembly, Grey, Complete				$ 268.46
14	242083003		Label-module Cover, Grey   (Replaces: 242083023)				$ 71.59
23	241947009		Drip Tray, Grey				$ 16.69
82	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
90	241732703		Light Pipe, Reflector		Appelez-nous	-
38C	242053503		Board-control			Immediately	$ 268.46
NI	5304521691		Harness-dispenser Door		Appelez-nous	-
NIA	218976439		Tube, Water, 32", Yellow, Valve, To Door				$ 19.13
NIB	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 34.73
NIC	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker			Immediately	$ 20.56
NIC	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
NID	242220206		Tube-water Inlet, .315 - 97.50", Brown/tan				$ 46.78
