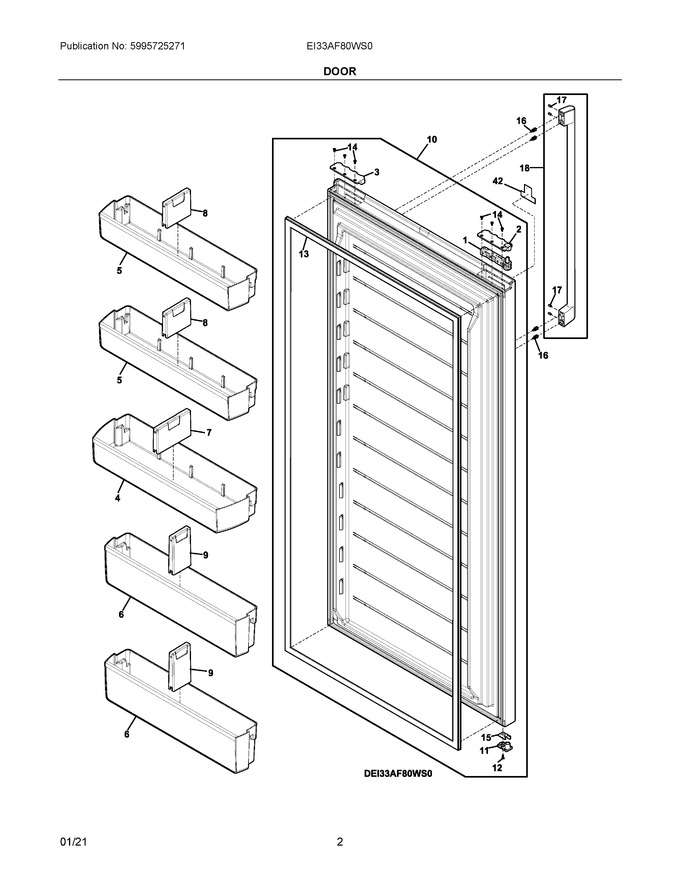

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524644		Closer Assembly, Door, Lh Upper			Immediately	$ 95.05
2	5304524624		Cover, Door Cap, Gray, Lh, Closer Side				$ 14.46
3	5304524625		Cover, Door Cap, Gray, Rh, Non-closer Side				$ 13.74
4	5304524631		Bin, Door, Gallon			Immediately	$ 149.27
5	5304539737		Bin, Door, 2 Liter   (Replaces: 5304524632)			Immediately	$ 115.81
6	5304539738		Bin, Door, Tall Items   (Replaces: 5304524633)		Appelez-nous	-
7	5304524846		Divider, Gallon, Door Bin			Immediately	$ 28.92
8	5304524634		Divider, Door Bin, 2 Liter			Immediately	$ 28.92
9	5304524635		Divider, Door Bin, Tall Items				$ 30.37
10	5304524741		Door Assembly, Lh Swing, Stainless			Immediately	$ 723.33
11	5304524745		Bearing, Door, Lower			Immediately	$ 7.96
12	241953903		Screw, Door Stop, Lower				$ 5.07
13	140190906879		Gasket, Door, Grey   (Replaces: 5304524888)				$ 111.73
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
15	5304524768		Stop, Door, Lower Bearing				$ 10.85
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
17	218755410		Screw-set, 10-32 X .354 In		Appelez-nous	-
18	5304524807		Handle Assembly, Stainless, W/set Screws			Immediately	$ 182.18
42	5304532471		Label Assembly, Nameplate, Chrome, Electrolux   (Replaces: 5304524867)				$ 18.27
NIA	241601002		Wrench, Allen		Appelez-nous	-
