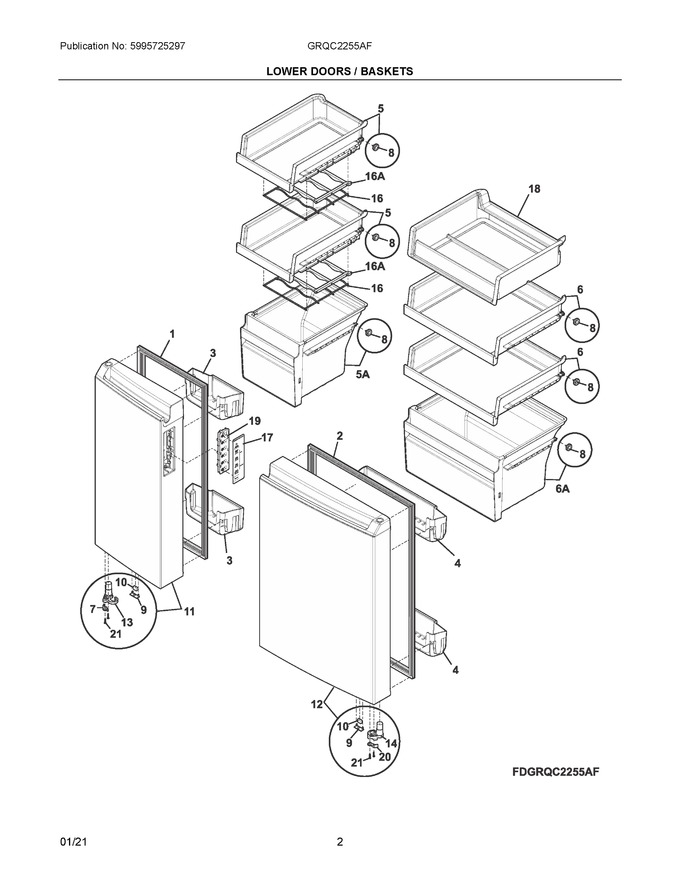

02 - Lower Doors / Baskets


03 - Fresh Food Doors


04 - Cabinet


05 - Shelves


06 - Fresh Food System & Air Flow


07 - Lower System / Machine Compartment


08 - Ice & Water Dispenser


09 - Fresh Food Ice Maker System


10 - Fresh Food Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526834		Gasket, Door, Lh Freezer		Appelez-nous	-
2	5304526831		Gasket, Door, Rh Freezer		Appelez-nous	-
3	5304526862		Bin, Fixed, Lh Door, Freezer		Appelez-nous	-
4	5304526861		Bin, Fixed, Rh Door, Freezer		Appelez-nous	-
5	5304526853		Drawer Assembly, Freezer, Lh Top		Appelez-nous	-
6	5304526858		Drawer Assembly, Freezer, Rh Top		Appelez-nous	-
7	5304527421		Stop, Frzr Door, Lh Bottom		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 16.84
9	5304526830		Cover, Sensor Magnet		Appelez-nous	-
10	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
11	140235214636		Door Assembly, Freezer, Stainless, Lh   (Replaces: 5304526832)				$ 312.40
12	5304536922		Door Assembly, Freezer, Stainless, Rh   (Replaces: 5304526828)				$ 292.69
13	5304526833		Bearing, Auto Closer, Lh		Appelez-nous	-
14	5304526829		Bearing, Auto Closer, Rh				$ 12.13
16	5304526854		Rack Assembly, Bottle, Wire		Appelez-nous	-
17	5304526835		Overlay, User Interface, Freezer		Appelez-nous	-
18	140163962032		Container, Ice, Freezer   (Replaces: 5304526856)		Appelez-nous	-
19	5304531769		Pc Board, Display, Middle Drawer   (Replaces: 5304523013)			Immediately	$ 80.23
20	5304527420		Stop, Frzr Door, Rh Bottom		Appelez-nous	-
21	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
16A	5304526855		Mat, Wine Rack		Appelez-nous	-
5A	5304526857		Drawer Assembly, Freezer, Lh Bottom		Appelez-nous	-
6A	5304526859		Drawer Assembly, Freezer, Rh Bottom		Appelez-nous	-
