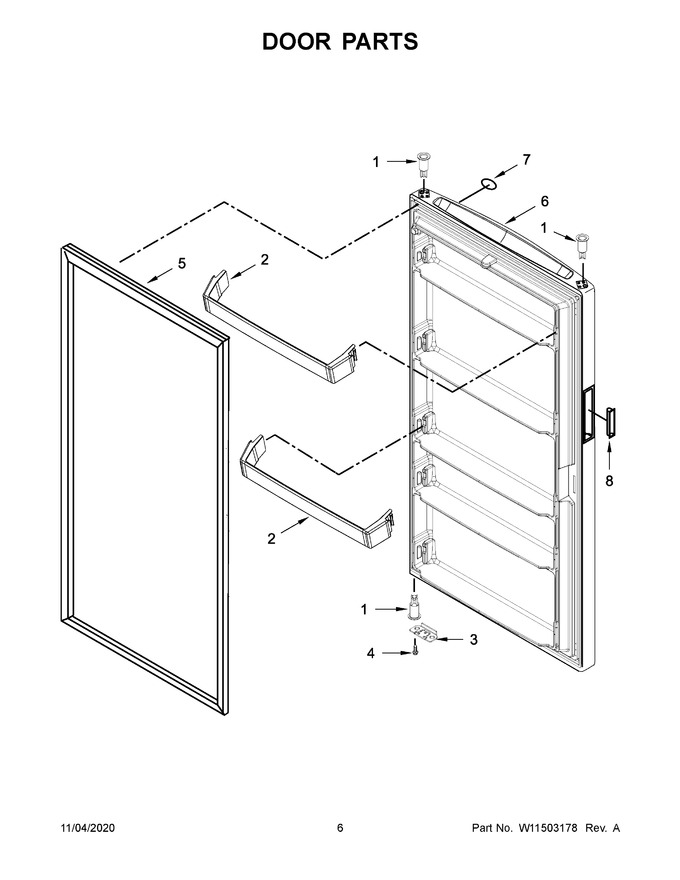

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 82.92 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | 7101P35660 | Screw |
|
- | |||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 274.68 | ||||
| 6 | W10746783 | Assembly, Door (includes Handle Cup) (white) (Replaces: W10673691) |
|
$ 767.76 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | W10352523 | Handle, Cup (white) |
|
$ 21.60 |
