SELECT A DIAGRAM

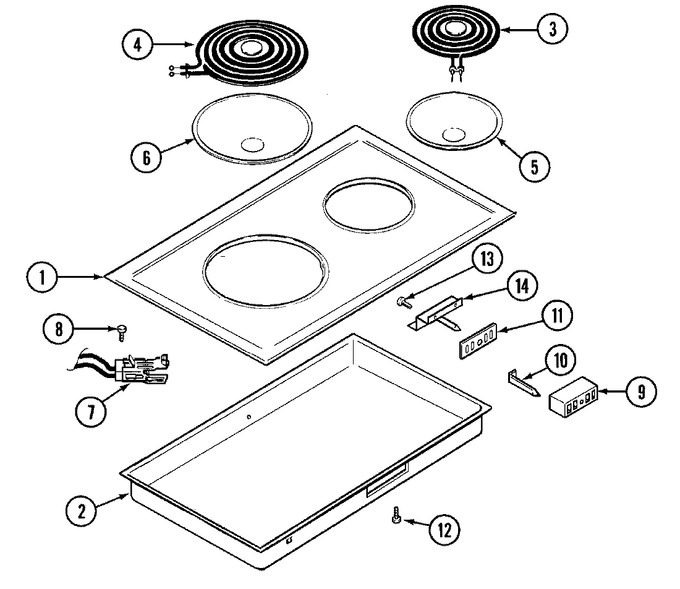

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100068 | Top (blk) | Series 1 |
|
- | ||||
| 2 | Y04100071 | Pan, Cartridge | Series 1 |
|
- | ||||
| 3 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | Series 1 |
|
Immediately | $ 50.62 | |||
| 4 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) | Series 1 |
|
Immediately | $ 47.21 | |||
| 5 | 715877 | Pan, Drip (6``) | Series 1 |
|
Immediately | $ 19.39 | |||
| 6 | 715878 | Pan, Drip (8``) | Series 1 |
|
Immediately | $ 21.16 | |||
| 7 | 12001676 | Receptacle Mgt Kit (Replaces: 12200010) | Series 1 |
|
Immediately | $ 28.45 | |||
| 8 | WP74004005 | Screw (Replaces: Y708359) | Series 1 |
|
$ 6.95 | ||||
| 9 | WPY708730 | Block, Terminal (Replaces: Y708730) | Series 1 |
|
Immediately | $ 87.44 | |||
| 10 | Y708572 | Spade, Contact | Series 1 |
|
Immediately | $ 11.34 | |||
| 11 | 708834 | Insulator, Contact Spade | Series 1 |
|
$ 13.49 | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | Series 1 |
|
Immediately | $ 7.15 | |||
| 13 | WP488234 | Screw (Replaces: 708861) | Series 1 |
|
$ 6.07 | ||||
| 14 | WP74007474 | Receptacle, Ceramic (Replaces: Y704146) | Series 1 |
|
Immediately | $ 129.78 | |||
| 14 | Y04100060 | Bracket, Retaining | Series 1 |
|
- | ||||
| 14 | Y712355 | Bracket, Receptacle | Series 1 |
|
- | ||||
| NI | 71002546 | Manual, Use & Care | Series 10 |
|
- |
