01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts

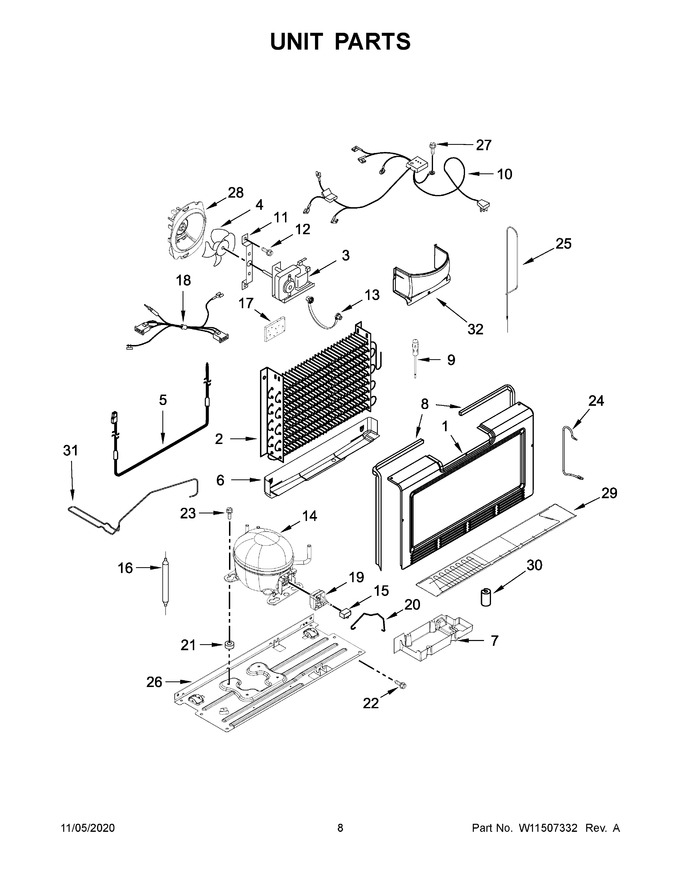

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 106.82 | |||||
| 2 | W11507067 | Evaporator (Replaces: W11209261) |
|
Immediately | $ 179.91 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 55.26 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 5 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 221.07 | ||||
| 6 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 102.36 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 7.50 | |||||
| 9 | WPW10383615 | Thermistor, Evaporator (Replaces: W10383615) |
|
Immediately | $ 42.76 | ||||
| 10 | W11648068 | Unit Harness (includes Power Cord) (Replaces: W11293512) |
|
Immediately | $ 92.01 | ||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | 380732014 | Screw |
|
- | |||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.12 | |||||
| 14 | W10233961 | Compressor (Replaces: W11189855) |
|
$ 551.48 | |||||
| 15 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 89.54 | ||||
| 16 | WPW10143759 | Drier (Replaces: W10709968) |
|
Immediately | $ 27.70 | ||||
| 17 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 12.66 | ||||
| 18 | W11670030 | Harness, Evaporator Fan (Replaces: W11324678) |
|
$ 54.54 | |||||
| 19 | W11198881 | Device, Start (Replaces: W10872275) |
|
$ 148.04 | |||||
| 20 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 10.19 | |||||
| 21 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 13.04 | |||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.39 | |||||
| 23 | W11661574 | Screw (Replaces: 489473) |
|
$ 12.25 | |||||
| 24 | W10861955 | Tube, Suction |
|
Immediately | $ 68.63 | ||||
| 25 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 26 | W10574497 | Pan, Compressor |
|
$ 145.58 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 32.45 | |||||
| 29 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 30 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| 31 | W10574478 | Tube, Discharge |
|
$ 106.28 | |||||
| 32 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
