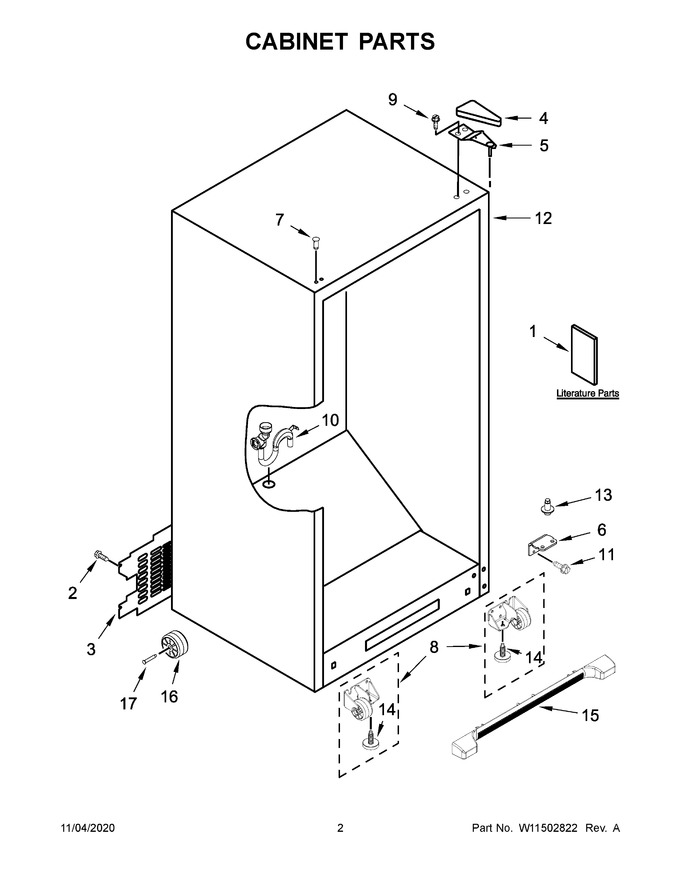

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11320186 | Use And Care Guide |
|
- | |||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11311063 | Cover, Unit |
|
$ 47.16 | |||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 17.31 | |||||
| 5 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 6 | W10574264 | Plate, Bottom Hinge (white) |
|
$ 141.96 | |||||
| 7 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 8 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 32.01 | ||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 43.70 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 6.92 | ||||
| 12 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 12.76 | |||||
| 14 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 15 | WPW10534161 | Grill, Front (white) (Replaces: W10534161) |
|
$ 126.08 | |||||
| 16 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 17 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 1A | W11357345 | Energy Guide |
|
- | |||||
| 1B | W11408463 | Tech Sheet |
|
- | |||||
| 8A | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 32.01 |
