01 - Cover Sheet
02 - Cabinet Parts

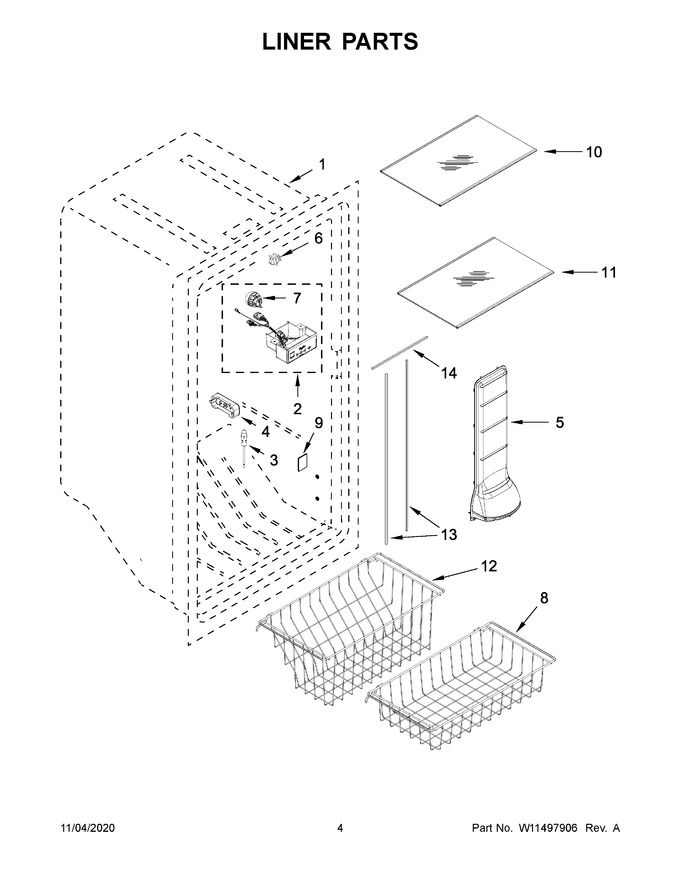

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11496879 | Control Assembly (Replaces: W11396162) |
|
Immediately | $ 120.81 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 115.07 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
Immediately | $ 32.13 | ||||
| 8 | W10736055 | Basket, Shallow |
|
$ 230.94 | |||||
| 9 | 160123001 | Cover, Icemaker Hole |
|
- | |||||
| 10 | W11430610 | Shelf, Deep (Replaces: W10569274) |
|
$ 138.05 | |||||
| 11 | W11430570 | Shelf, Shallow (Replaces: W10569275) |
|
$ 112.60 | |||||
| 12 | W10736043 | Basket, Deep |
|
$ 250.80 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 |
