SELECT A DIAGRAM

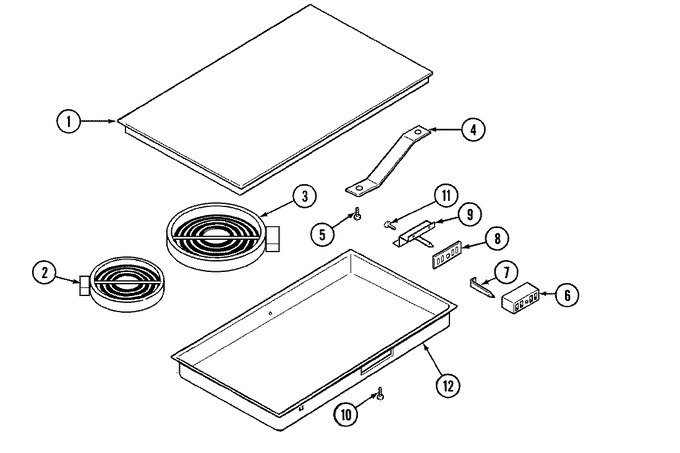

01 - Accessories (glass Cartridge)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002459 | Glass/frame Assy.(radiant-wht) | Series 11 |
|
- | ||||
| 2 | W10823702 | Element (6`` Radiant) 1200w (Replaces: 71002433) | Series 11 |
|
$ 310.65 | ||||
| 3 | 71002461 | Element (radiant-2000w) | Series 11 |
|
$ 142.29 | ||||
| 4 | 71002462 | Support, Spring | Series 11 |
|
- | ||||
| 4 | WPY04100059 | Screw (Replaces: Y04100059) | Series 11 |
|
$ 6.96 | ||||
| 5 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | Series 11 |
|
$ 12.14 | ||||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | Series 11 |
|
Immediately | $ 87.44 | |||
| 7 | Y708572 | Spade, Contact | Series 11 |
|
Immediately | $ 11.34 | |||
| 8 | 708834 | Insulator, Contact Spade | Series 11 |
|
$ 13.49 | ||||
| 9 | Y04100060 | Bracket, Retaining | Series 11 |
|
- | ||||
| 10 | WP12990527 | Screw (Replaces: Y708955) | Series 11 |
|
Immediately | $ 7.15 | |||
| 11 | WP488234 | Screw (Replaces: 708861) | Series 11 |
|
$ 6.07 | ||||
| 12 | Y04100064 | Pan, Cartridge | Series 11 |
|
- | ||||
| NI | 16007531 | Manual, Use & Care | Series 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | Series 11 |
|
- |
