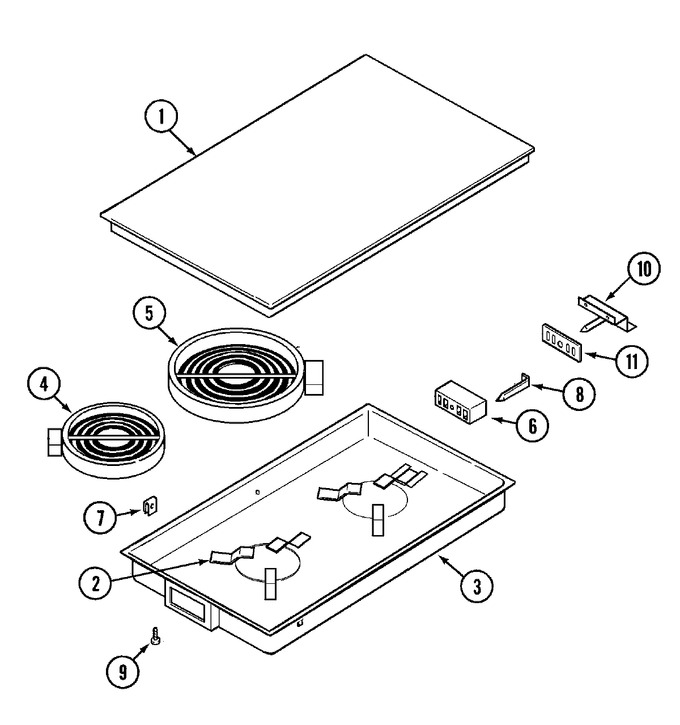

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002431 | Top, Main (blk) | Series 11 |
|
- | ||||
| 2 | 71002205 | Support, Element | Series 11 |
|
$ 10.56 | ||||
| 3 | 71002432 | Pan, Cartridge | Series 11 |
|
- | ||||
| 4 | W10823702 | Element (6`` Radiant) 1200w (Replaces: 71002433) | Series 11 |
|
$ 310.65 | ||||
| 5 | W10823693 | Element (8`` Radiant) 1800 Watt (Replaces: 71002434) | Series 11 |
|
Immediately | $ 205.87 | |||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | Series 11 |
|
Immediately | $ 87.44 | |||
| 7 | Y708910 | Clip | Series 11 |
|
- | ||||
| 8 | Y04100175 | Spade & Wire Assy. | Series 11 |
|
- | ||||
| 8 | 71001182 | Wire, Natural | Series 11 |
|
- | ||||
| 8 | Y708572 | Spade, Contact | Series 11 |
|
Immediately | $ 11.34 | |||
| 9 | WP488234 | Screw (Replaces: 708861) | Series 11 |
|
$ 6.07 | ||||
| 10 | Y700648 | Bracket, Retaining Assy. | Series 11 |
|
- | ||||
| 11 | Y04100171 | Stop, Anti Rotation | Series 10 |
|
- | ||||
| 11 | 708834 | Insulator, Contact Spade | Series 11 |
|
$ 13.49 | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | Series 11 |
|
- | ||||
| NI | 16007532 | Manual, Use & Care | Series 11 |
|
- |
