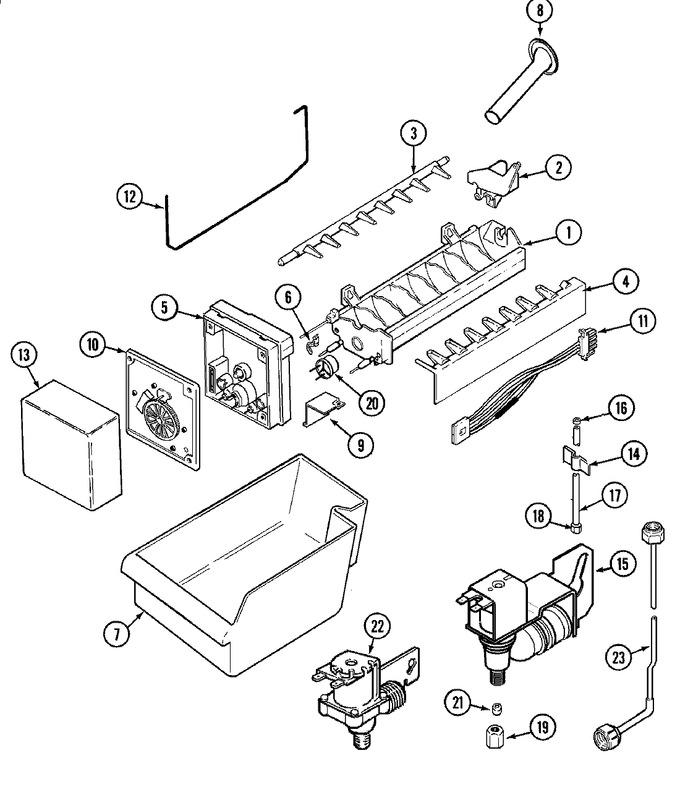

01 - Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950991 | Grease, Silicone | Series 10 |
|
- | ||||
| 1 | 950981 | Mold & Heater Assy. | Series 10 |
|
- | ||||
| 2 | 951001 | Inlet, Water | Series 10 |
|
- | ||||
| 3 | 951011 | Ejector, Ice | Series 10 |
|
- | ||||
| 4 | 951021 | Stripper, Ice | Series 10 |
|
- | ||||
| 5 | 951031 | Support, Module Housing | Series 10 |
|
- | ||||
| 5 | 951061 | Screw | Series 10 |
|
- | ||||
| 6 | 951041 | Retainer, Thermostat | Series 10 |
|
- | ||||
| 7 | 61001886 | Pan, Ice | Series 10 |
|
$ 74.00 | ||||
| 8 | 61001888 | Grommet, Water Entry | Series 10 |
|
- | ||||
| 9 | 951071 | Bracket, Module & Heater | Series 10 |
|
- | ||||
| 9 | 951081 | Screw, Bracket | Series 10 |
|
- | ||||
| 10 | 951091 | Capacitor | Series 10 |
|
- | ||||
| 10 | 4000211 | Screw | Series 10 |
|
- | ||||
| 11 | 61001882 | Wire Harness, Ice Maker | Series 10 |
|
$ 56.15 | ||||
| 12 | 681121 | Arm, Sensor | Series 10 |
|
- | ||||
| 13 | 61001239 | Cover, Ice Maker | Series 10 |
|
- | ||||
| 14 | 4000161 | Screw | Series 10 |
|
- | ||||
| 14 | 535168 | Clamp, Tubing | Series 10 |
|
- | ||||
| 14 | 61001889 | Clip, Water Line (adhesive) | Series 10 |
|
- | ||||
| 15 | WP61005273 | Valve, Water (Replaces: 61001884) | Series 10 |
|
$ 119.89 | ||||
| 15 | WP8281227 | Screw (Replaces: 61002819) | Series 10 |
|
$ 9.40 | ||||
| 16 | 603334 | Clamp, Spring | Series 10 |
|
- | ||||
| 17 | 675796 | Fuse | Series 10 |
|
$ 48.67 | ||||
| 18 | 695831 | Nut, Compression (1/4``) | Series 10 |
|
- | ||||
| 19 | 694321 | Guide-bar | Series 10 |
|
- | ||||
| 20 | 950931 | Cement, Alumilastic (4 Oz.) | Series 10 |
|
- | ||||
| 20 | 950921 | Thermostat | Series 10 |
|
- | ||||
| 21 | 694311 | Sleeve, Brass | Series 10 |
|
- |
