SELECT A DIAGRAM

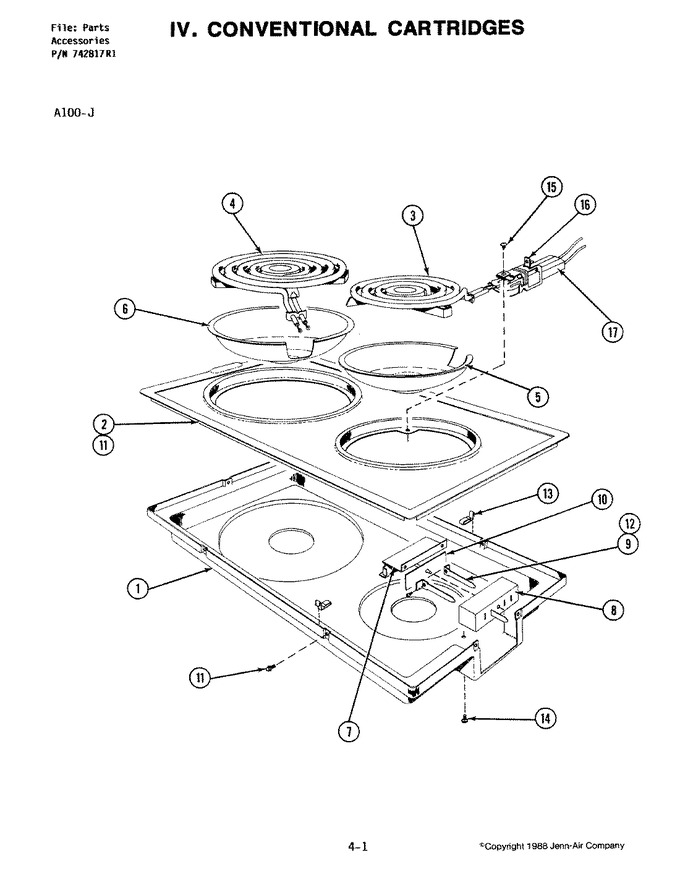

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703347 | Pan, Cartridge (blk) | Series 1 |
|
- | ||||
| 2 | WP2002F188-09 | Top, Cartridge (blk) (Replaces: Y704950) | Series 1 |
|
$ 299.86 | ||||
| 3 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | Series 10 |
|
Immediately | $ 50.62 | |||
| 3 | WP3191455 | Element, Conv. (6`` 208v) (Replaces: Y704115) | Series 1 |
|
$ 133.85 | ||||
| 4 | WPW10259865 | Element, Conv. (9`` 208v) (Replaces: Y704114) | Series 1 |
|
Immediately | $ 105.92 | |||
| 4 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) | Series 10 |
|
Immediately | $ 47.21 | |||
| 5 | 715877 | Pan, Drip (6``) | Series 1 |
|
Immediately | $ 19.39 | |||
| 6 | 715878 | Pan, Drip (8``) | Series 1 |
|
Immediately | $ 21.16 | |||
| 7 | Y700648 | Bracket, Retaining Assy. | Series 1 |
|
- | ||||
| 8 | WPY708730 | Block, Terminal (Replaces: Y708730) | Series 1 |
|
Immediately | $ 87.44 | |||
| 9 | Y708572 | Spade, Contact | Series 1 |
|
Immediately | $ 11.34 | |||
| 10 | 708834 | Insulator, Contact Spade | Series 1 |
|
$ 13.49 | ||||
| 11 | WP12990527 | Screw (Replaces: Y708955) | Series 1 |
|
Immediately | $ 7.15 | |||
| 12 | WP488234 | Screw (Replaces: 708861) | Series 1 |
|
$ 6.07 | ||||
| 13 | Y708910 | Clip | Series 1 |
|
- | ||||
| 14 | WP59002061 | Screw (Replaces: Y707172) | Series 1 |
|
$ 6.98 | ||||
| 15 | WP74004005 | Screw (Replaces: Y703571) | Series 1 |
|
$ 6.95 | ||||
| 16 | Y712355 | Bracket, Receptacle | Series 1 |
|
- | ||||
| 17 | 12001676 | Rewire Kit (Replaces: 700125) | Series 1 |
|
Immediately | $ 28.45 | |||
| NI | CRU100UA | Manual, Use & Care | Series 10 |
|
- |
