SELECT A DIAGRAM

01 - Cover Sheet

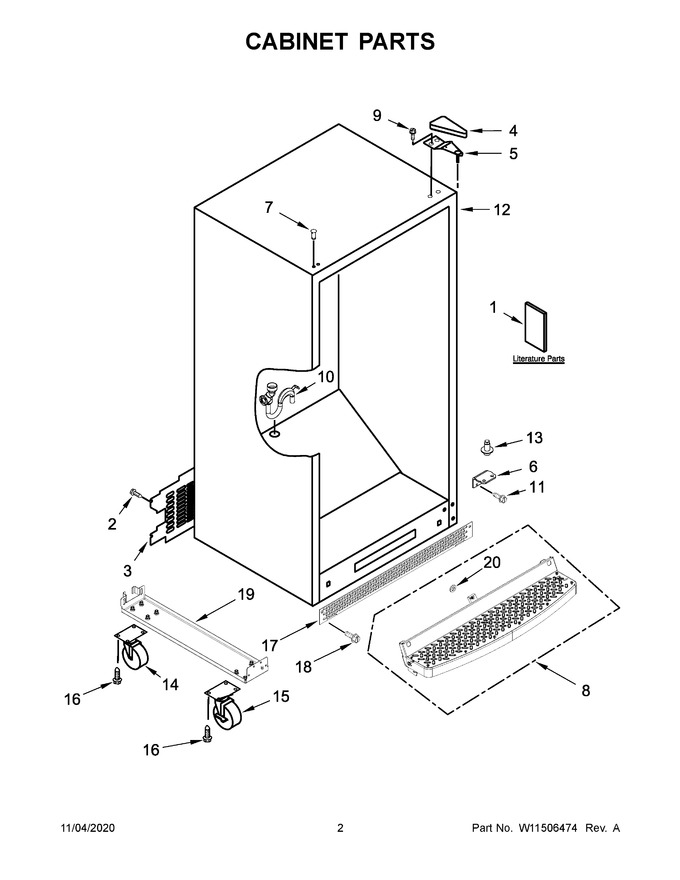

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11320189		Use And Care Guide		Appelez-nous	-
2	380675105		Screw		Appelez-nous	-
3	W11311062		Cover, Unit				$ 100.38
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 16.39
5	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 89.51
6	W11102844		Plate, Bottom Hinge (hammer Granite)		Appelez-nous	-
7	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 16.44
8	W11199807		Assembly, Pedal   (Replaces: W10897311)		Appelez-nous	-
9	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
10	W11673435		Tube, Drain   (Replaces: W11291514)			Immediately	$ 43.70
11	67006564		Screw   (Replaces: W10709365)			Immediately	$ 6.92
12	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
13	W11676609		Pin, Lower Hinge   (Replaces: W10574325)				$ 12.76
14	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 72.78
15	W10741533		Caster, Rigid 5" (with Brake) (left Hand)   (Replaces: 8211251)		Appelez-nous	-
16	WP3400527		Screw   (Replaces: 3400527)				$ 6.77
17	W11199697		Grill, Toe   (Replaces: W10891102)				$ 96.70
18	W11505268		Screw (grey)   (Replaces: W10684077)		Appelez-nous	-
19	W11316673		Bracket, Caster   (Replaces: W11088141)		Appelez-nous	-
20	W11316683		Washer   (Replaces: W11130286)		Appelez-nous	-
15A	8211250		Caster, Rigid 5" (with Brake) (right Hand)				$ 38.24
1A	W11357362		Energy Guide		Appelez-nous	-
1B	W11408463		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
