SELECT A DIAGRAM

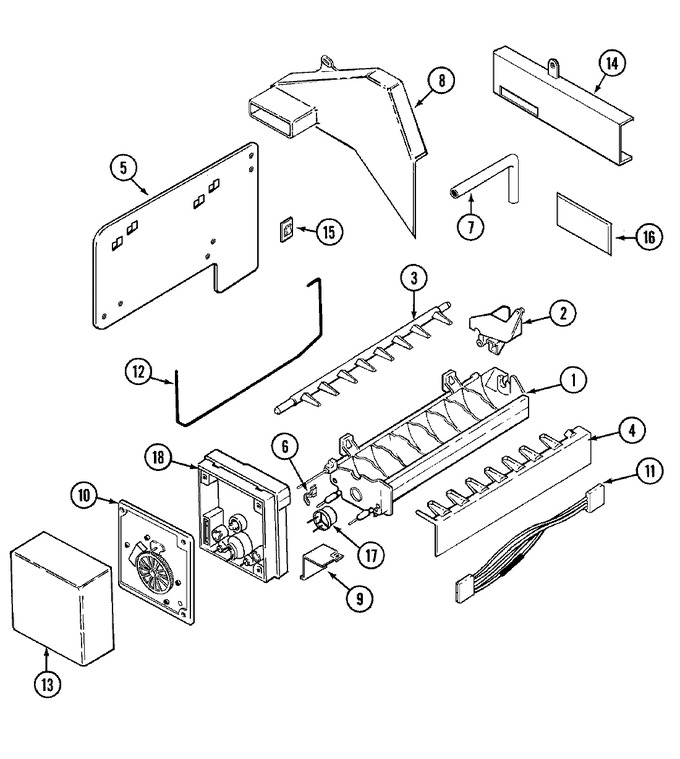

01 - Retrofit Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 61001593 | Wire Harness | Series 10 |
|
- | |||||
| 1 | 950981 | Mold & Heater Assy. | Series 10 |
|
- | ||||
| 1 | 950991 | Grease, Silicone | Series 10 |
|
- | ||||
| 2 | 951001 | Inlet, Water | Series 10 |
|
- | ||||
| 3 | 951011 | Ejector, Ice | Series 10 |
|
- | ||||
| 4 | 951021 | Stripper, Ice | Series 10 |
|
- | ||||
| 5 | 61001600 | Tape, Double Back 3 X 3 | Series 10 |
|
- | ||||
| 5 | 61001596 | Mounting Plate, S.s. | Series 10 |
|
- | ||||
| 6 | 951041 | Retainer, Thermostat | Series 10 |
|
- | ||||
| 7 | 61001592 | Tube, Fill | Series 10 |
|
$ 26.52 | ||||
| 8 | WPW10253196 | Screw (Replaces: Y707113) | Series 10 |
|
$ 3.76 | ||||
| 8 | 701983 | Duct, Air | Series 10 |
|
- | ||||
| 9 | 61001594 | Bolt, 8/32 X 1/4 | Series 10 |
|
- | ||||
| 9 | 951081 | Screw, Bracket | Series 10 |
|
- | ||||
| 9 | 61001595 | Nut, 18-8 Hex Head | Series 10 |
|
$ 5.27 | ||||
| 9 | 951071 | Bracket, Module & Heater | Series 10 |
|
- | ||||
| 10 | 951091 | Capacitor | Series 10 |
|
- | ||||
| 11 | 61001593 | Wire Harness | Series 10 |
|
- | ||||
| 12 | 701421 | Arm, Sensor | Series 10 |
|
- | ||||
| 13 | 681131 | Cover Ice Maker | Series 10 |
|
- | ||||
| 14 | 61001597 | Baffle, Air | Series 10 |
|
- | ||||
| 15 | 676191 | Clip, Tube | Series 10 |
|
- | ||||
| 16 | 657061 | Insert | Series 10 |
|
- | ||||
| 17 | 950921 | Thermostat | Series 10 |
|
- | ||||
| 17 | 950931 | Cement, Alumilastic (4 Oz.) | Series 10 |
|
- | ||||
| 18 | 951061 | Screw | Series 10 |
|
- | ||||
| 18 | 951031 | Support, Module Housing | Series 10 |
|
- |
