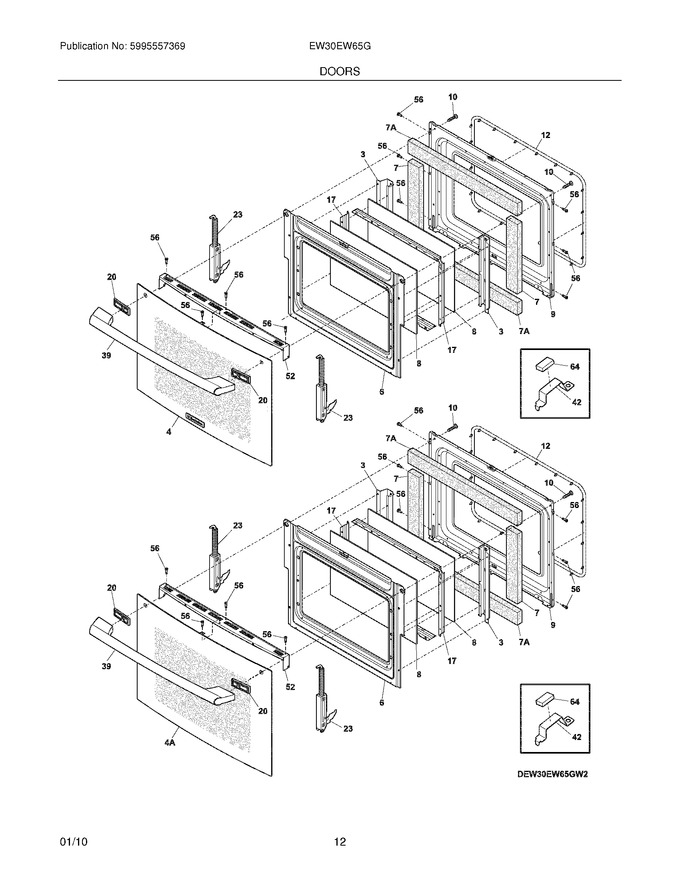

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318261391		Glass Assy.,oven Door ,black ,outer ,w/trim & Badge				$ 171.36
6	318904200		Deflector,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318904005		Liner,door		Appelez-nous	-
10	5303323139		Screw,10-24 X 0.906				$ 13.46
12	318053132		Gasket,oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
17	318264733		Spacer,glass ,(2)   (Replaces: 318264711)				$ 72.05
20	318902901		Spacer,handle ,black ,(2)				$ 15.02
23	318900600		Hinge,oven Door				$ 195.35
39	241881313		Handle,door ,black				$ 165.80
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318904701		Trim,door ,black ,upper				$ 73.76
56	5304462581		Screw,8-32 X 5/16				$ 11.34
64	318165800		Spacer				$ 17.72
4A	318261394		Glass Assy.,lower Door ,black ,outer ,w/trim		Appelez-nous	-
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
