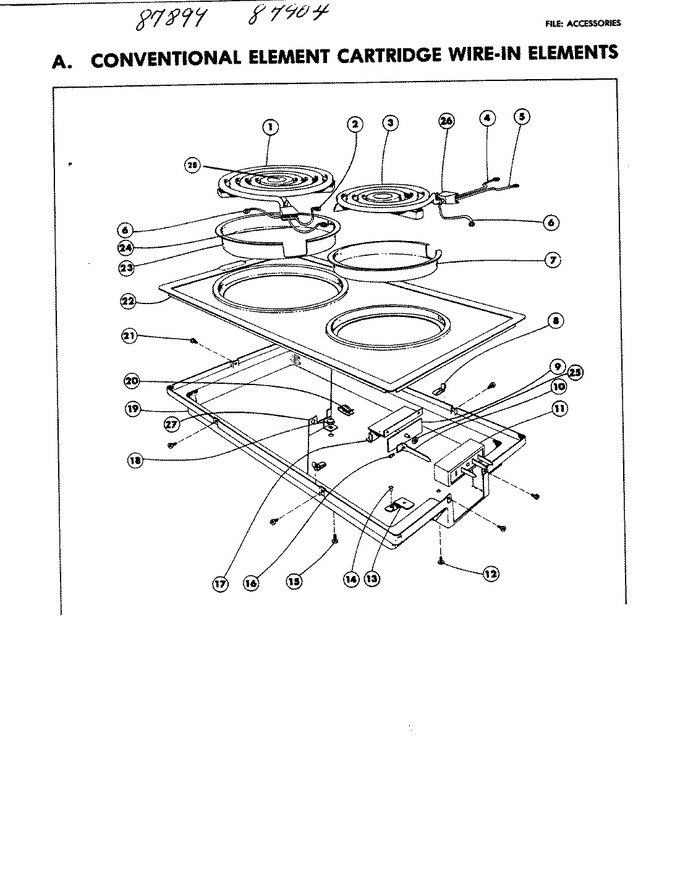

01 - Conventional Element Cartridge Wire-in


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y708098		Element, Conv. 208v	Series 0	Appelez-nous	-
1	M21MD		Burner Element 240v   (Replaces: 707728)	Series 0		Immediately	$ 44.96
2	Y708889		Wire, Red	Series 0	Appelez-nous	-
3	708097		Element, Conv. 208v	Series 0	Appelez-nous	-
3	Y707727		Burner (6``)	Series 0	Appelez-nous	-
4	708892		Wire Blue	Series 0	Appelez-nous	-
5	Y708891		Wire Yellow	Series 0	Appelez-nous	-
6	708289		Wire-green	Series 0	Appelez-nous	-
7	715877		Pan, Drip 6``   (Replaces: Y700440)	Series 0		Immediately	$ 19.39
8	Y708910		Clip	Series 0	Appelez-nous	-
9	708834		Insulator, Contact Spade	Series 0			$ 13.49
10	Y708572		Spade, Contact	Series 0		Immediately	$ 11.34
11	WPY708730		Block, Terminal   (Replaces: Y708730)	Series 0		Immediately	$ 87.44
12	WP59002061		Screw   (Replaces: Y707172)	Series 0			$ 6.98
13	708880		Location Bracket	Series 0	Appelez-nous	-
14	WP210720		Rivet, Jar Lid   (Replaces: Y707128)	Series 0			$ 12.14
15	707667		Screw	Series 0	Appelez-nous	-
16	WP488234		Screw   (Replaces: 708861)	Series 0			$ 6.07
17	Y787814		Bracket	Series 0	Appelez-nous	-
18	707835		Nut Acorn	Series 0	Appelez-nous	-
19	708828		Cartridge Pan	Series 0			$ 334.07
19	708941		Pan, Cartridge(208v)	Series 0	Appelez-nous	-
20	707753		Clamp,cable	Series 0	Appelez-nous	-
21	WP12990527		Screw   (Replaces: Y708955)	Series 0		Immediately	$ 7.15
22	WP2002F208-50		Insert Top   (Replaces: Y708875)	Series 0			$ 188.34
23	715878		Pan, Drip, (``8``)   (Replaces: Y700441)	Series 0		Immediately	$ 21.16
24	Y708890		Wire, Black	Series 0	Appelez-nous	-
25	Y708862		Nut, Speed	Series 0			$ 13.08
26	715805		Crmc Block	Series 0	Appelez-nous	-
27	788007		No Longer Available	Series 0	Appelez-nous	-
28	770200		Medallion	Series 0	Appelez-nous	-
28	771310		Rewiring Kit	Series 0	Appelez-nous	-
